Samsung 46″ Ultra Narrow Bezel LCD Video Wall | 3.5mm Bezel Size [LH46VMBUBGBQZXUEA]

SAMSUNG

  • Always-on, space-saving solution with extreme-narrow bezels
  • Transform any space with high impact visuals
  • View content from any angle
  • Vibrant images in any light
  • Comprehensive calibration to fit your needs
  • Resolution: FHD 1080p
  • Aspect Ratio: 16:9
  • Screen Surface Description: Glossy

41,999

  • VMB-U product explains 69.9mm Slim Depth, 3.5mm Extreme Narrow Bezel.
    Ultra narrow bezel
  • The VMB-U product stands in front and side, and has a 178° Horizontal & Vertical Icon.
    Wide viewing angle
  • Conventional Glare Panel and VMB-U are compared. There are icons such as Non-Glare Panel, High Contrast Ratio at the top.
    Non-glare

Always-on, space-saving solution with extreme-narrow bezels

See an immersive and dependable viewing experience, 24/7 with Samsung’s VMB-U series. The display’s slim depth and 500 nit brightness ensures highly visible images and legible messages in a wide range of locations from shopping malls to lobbies, meeting rooms, control rooms and more.

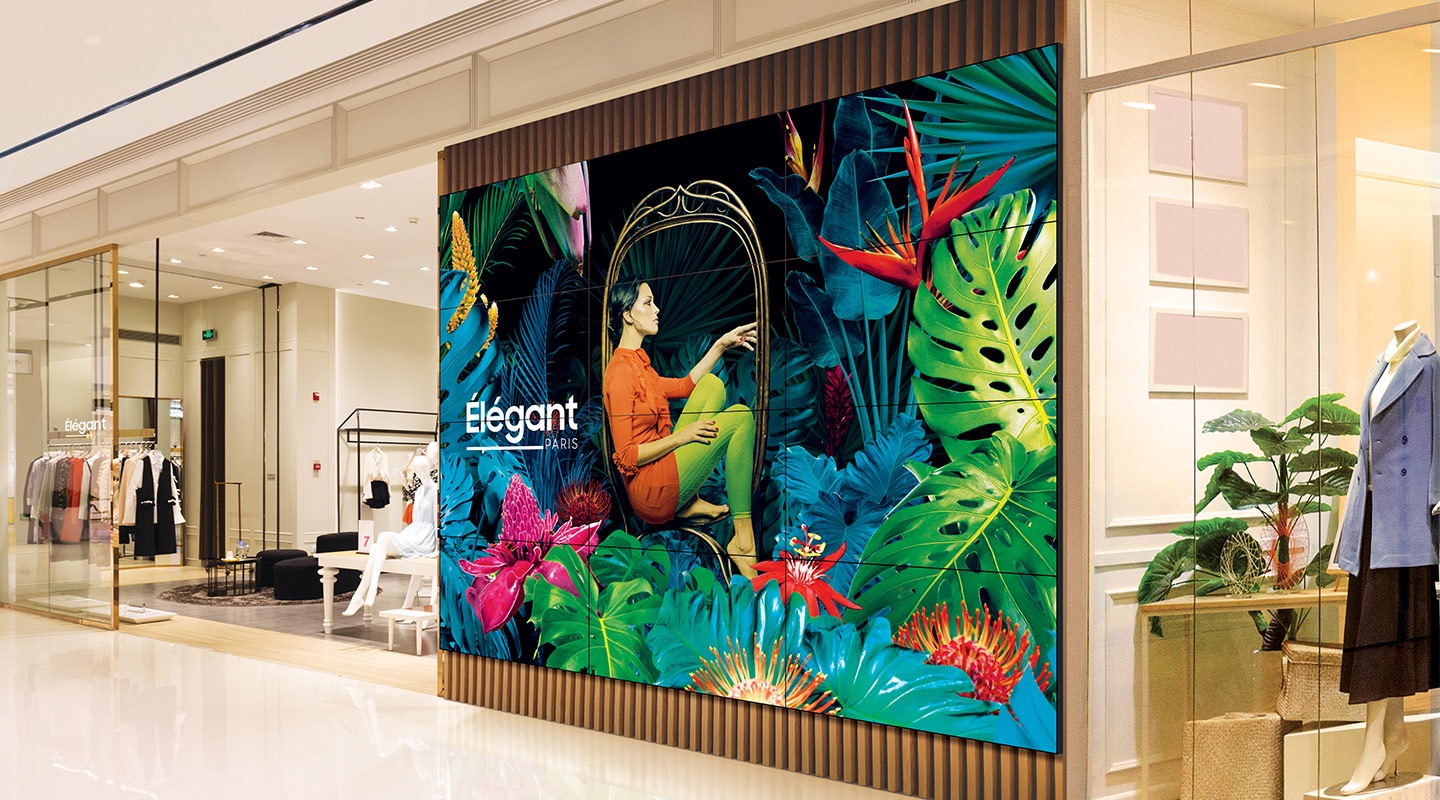

The VMB-U is installed on the outer wall of the shopping mall, and an advertisement screen is displayed.

Transform any space with high impact visuals

The slender design and 69.9mm cabinet depth provide flexibility for installation and an ultra-narrow 3.5mm bezel-to-bezel width creates a seamless picture opening endless possibilities for designing a captivating visual experience.

VMB-U product explains 69.9mm Slim Depth, 3.5mm Extreme Narrow Bezel.

*Exact depth varies by display size.

View content from any angle

Wide viewing angles mean content is easily visible even if viewers aren’t standing directly in front of the display. Audiences can get clear details and vivid colours regardless of where the screen is located.

The VMB-U product stands in front and side, and has a 178° Horizontal & Vertical Icon.

Vibrant images in any light

Non-glare panels evenly distribute light across the screen to maintain vibrant and accurate content. Combined with a high contrast ratio and 24/7 operation, visuals are vivid and eye-catching any time of the day or night — regardless of ambient light.

Conventional Glare Panel and VMB-U are compared. There are icons such as Non-Glare Panel, High Contrast Ratio at the top.

Image enhancement

Samsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, colour saturation and contrast are improved by adjusting the gamma curve. Using Black Equaliser mode, dark images are lightened, making details easier to see.

Various screens are displayed on the CCTV monitor, and Picture Enhancer and Black Equalizer ON/OFF are compared.

Comprehensive calibration to fit your needs

Multi-step factory tuning provides uniform brightness and colour. Users can also fine-tune advanced settings with free powerful Colour Expert Pro software. For quick and simple calibration, Colour Expert Pro Mobile enables white balance adjustments for displays up to 3×3 using a mobile camera.

Comparing the state before and after the calibration of the video wall using a phone. There are icons such as Factory Calibration and Samsung Color Expert Software.

Advanced presentation, simplified operation

Utilizing daisy chain design through DisplayPort 1.2 or HDMI ports enables the display to present UHD content on multiple screens without an external graphic card. Samsung’s UHD Signage Player Box streamlines functionality by combining the media player and content management software.

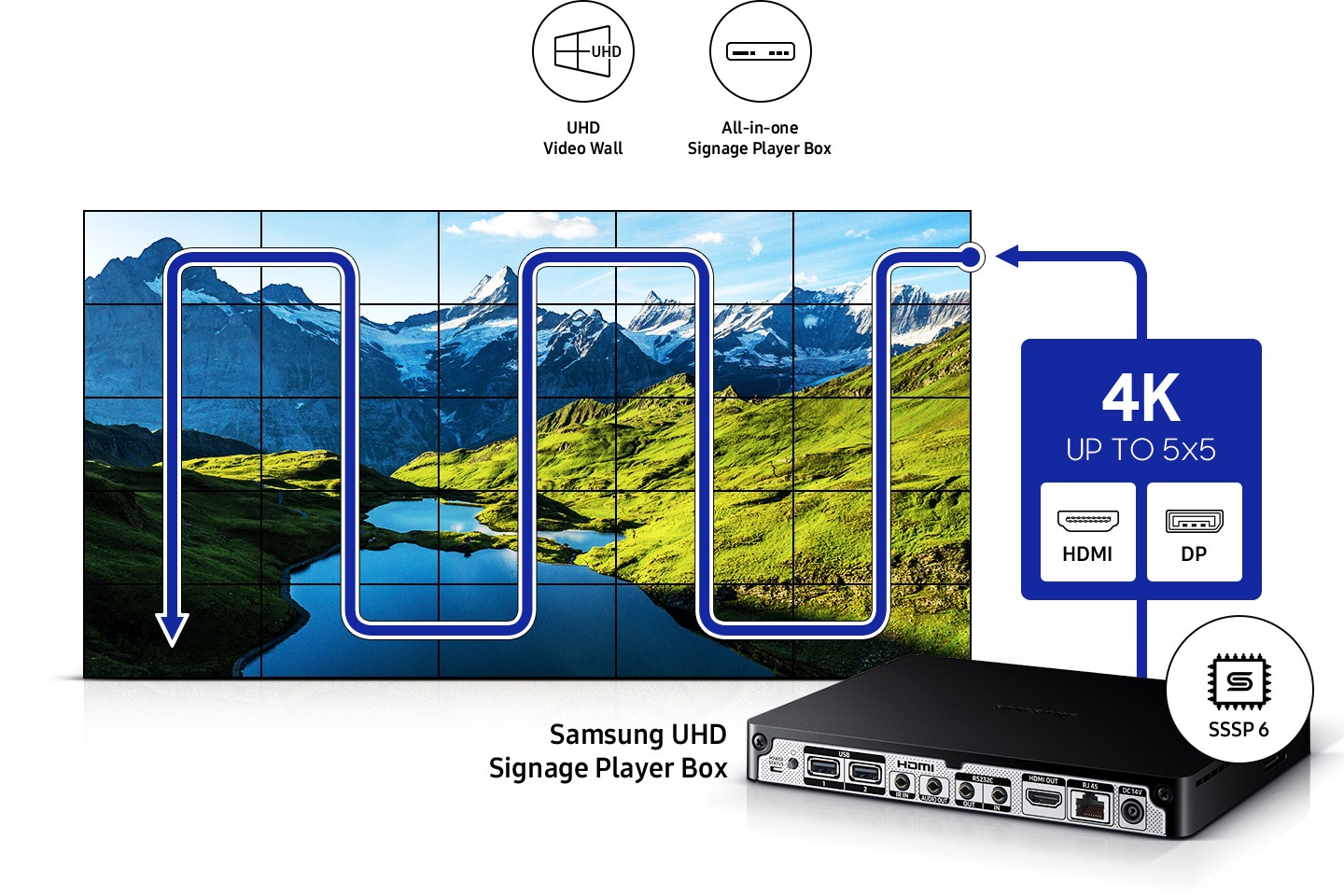

Up to 5X5, 4K signals are transmitted from All-in-one Samsung UHD Signage Player Box with SSSP 6 to Video Wall via HDMI or DP.

Durable and user-friendly design

IP5x certified, the VMB-U series is dust-resistant and able to withstand a range of environmental conditions without needing to prepare additional enclosure in dusty places. An embedded, centrally located infrared receiver (IR) allows for easier and more flexible user control to the display.

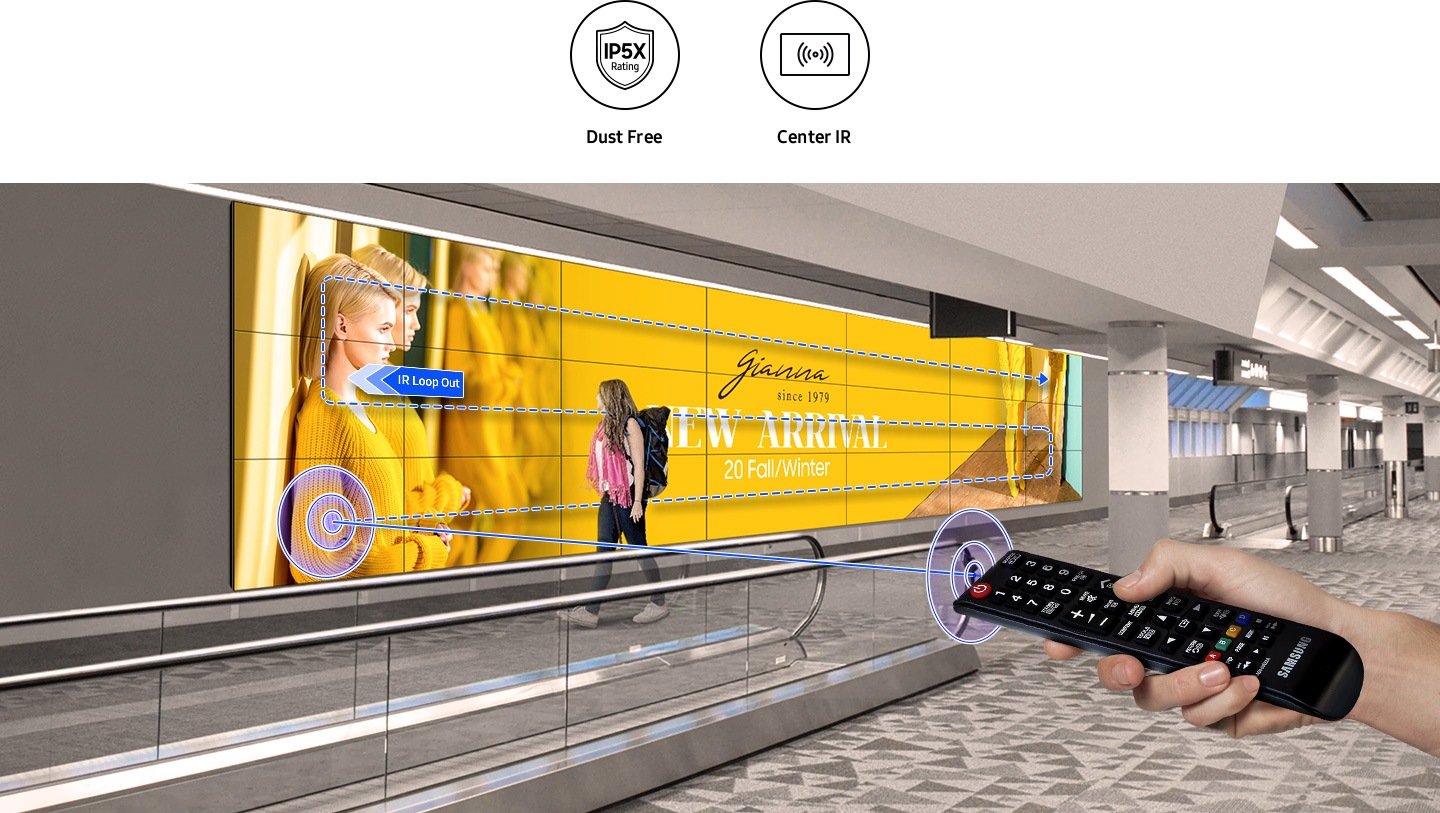

Remote signal is received from one monitor of the video wall and is transmitted to the whole through the IR Loop Out.

Rigorous testing, robust protection

VMB-U series is delivered in specialized packaging which has passed a rigorous 4-step test to meet ISTA standards, ensuring the display is protected from any potential damage during transit. This provides peace of mind for businesses that the display is ready to function immediately after delivery.

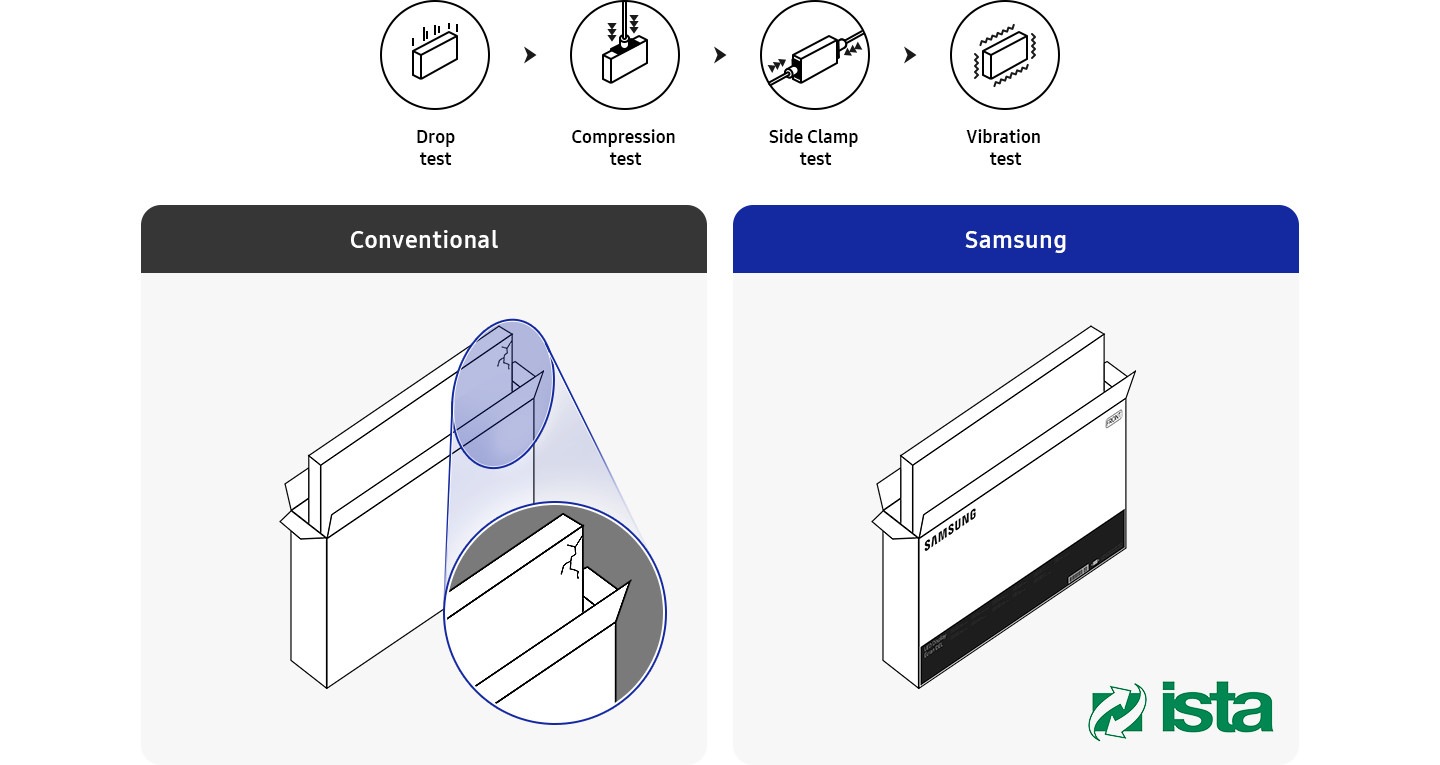

Comparison between Conventional and Samsung for the 4 step test process of drop, compression, side clamp, and vibration.

*ISTA: International Safe Transit Association



Displaying materials on the Video Wall and meeting in a conference room

Display

  • Diagonal Size46″
  • Panel TypeIPS
  • Resolution1,920 × 1,080
  • Pixel Pitch (HxV)0.53×0.53
  • Brightness (Typ)MAX 500 nit
  • Contrast Ratio1,200:1
  • Viewing Angle (Horizontal/Vertical)178/178
  • Response Time8ms
  • Colour Gamut72 %
  • Glass Haze25 %
  • H-Scanning Frequency62.7~72.3kHz
  • Maximum Pixel Frequency82MHz
  • V-Scanning Frequency57~63Hz
  • Contrast Ratio (Dynamic)45,000:1
  • Operation Time Support24/7

Connectivity

  • HDMI In2
  • DP In1
  • DVI InYes
  • Version of HDMI2
  • Version of DP1.2
  • Version of HDCP2.2
  • USB1
  • IR InYes
  • Audio InYes
  • Audio OutStereo Mini Jack
  • Video OutYes
  • Video OutNo
  • RS232 InYes
  • RS232 OutStereo Mini Jack
  • RJ45 InYes

Power

  • Power SupplyAC100-240V 50/60Hz
  • Power Consumption (On Mode)160 W
  • Power Consumption (Sleep Mode)0.5 W

Dimensions

  • Set Dimension (W×H×D)1022 × 577 × 69.9 mm
  • Package Dimension (W×H×D)1193 × 719 × 257 mm

Weight

  • Set Weight15.7 kg
  • Package Weight20.90 kg

Operation Conditions

  • Temperature0℃~ 40℃
  • Humidity10 ~ 90%

Mechanical Specification

  • VESA Mount600 x 400 mm
  • Bezel Width2.25mm(U/L), 1.25mm(R/B)
  • Bezel ColorBlack
  • Frame MaterialGlossy

Optional Feature

  • MountYes
  • StandNo

Eco

  • Energy Efficiency ClassG
SKU: LH46VMBUBGBQZXUEA Category: Tags: , ,
Brand

Screen Shape

Flat

Screen Size

46 inches

Display

  • Diagonal Size46″
  • Panel TypeIPS
  • Resolution1,920 × 1,080
  • Pixel Pitch (HxV)0.53×0.53
  • Brightness (Typ)MAX 500 nit
  • Contrast Ratio1,200:1
  • Viewing Angle (Horizontal/Vertical)178/178
  • Response Time8ms
  • Colour Gamut72 %
  • Glass Haze25 %
  • H-Scanning Frequency62.7~72.3kHz
  • Maximum Pixel Frequency82MHz
  • V-Scanning Frequency57~63Hz
  • Contrast Ratio (Dynamic)45,000:1
  • Operation Time Support24/7

Connectivity

  • HDMI In2
  • DP In1
  • DVI InYes
  • Version of HDMI2
  • Version of DP1.2
  • Version of HDCP2.2
  • USB1
  • IR InYes
  • Audio InYes
  • Audio OutStereo Mini Jack
  • Video OutYes
  • Video OutNo
  • RS232 InYes
  • RS232 OutStereo Mini Jack
  • RJ45 InYes

Power

  • Power SupplyAC100-240V 50/60Hz
  • Power Consumption (On Mode)160 W
  • Power Consumption (Sleep Mode)0.5 W

Dimensions

  • Set Dimension (W×H×D)1022 × 577 × 69.9 mm
  • Package Dimension (W×H×D)1193 × 719 × 257 mm

Weight

  • Set Weight15.7 kg
  • Package Weight20.90 kg

Operation Conditions

  • Temperature0℃~ 40℃
  • Humidity10 ~ 90%

Mechanical Specification

  • VESA Mount600 x 400 mm
  • Bezel Width2.25mm(U/L), 1.25mm(R/B)
  • Bezel ColorBlack
  • Frame MaterialGlossy

Optional Feature

  • MountYes
  • StandNo

Eco

  • Energy Efficiency ClassG
