The cassette conditioner of the MCD series belongs to devices of industrial and semi-industrial classes and is intended to maintain the set parameters of air in large areas:
- trading rooms;
- catering establishments;
- exhibition complexes and galleries;
- workshops and workshops.

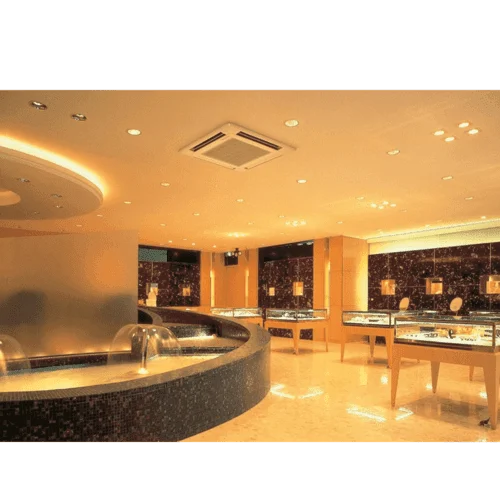

The evaporator of the internal “cassette” unit is located along the perimeter of the outer panel of the square case, which allows the fan to drive cold air in four directions simultaneously. Due to this, the unit installed in the false ceiling in the center of a room is able to “cover” a much larger area at once than a regular wall unit.
In order to install the indoor unit of a cassette air conditioner, a suspended ceiling and sufficient space between the suspended ceiling and the solid ceiling are required.
The internal block is completed / can be completed (option) with the wire control panel.
General functional features:
- Connection to indoor units using stranded wire.
- The job modes.3. Set the fan speed.
- Display information about operating modes on the LCD.
- Setting the time of automatic on / off using a timer.
Technology 180° -gradusnogo wave inverter conversion – control voltage without the “pulse” effects (jagged sinusoid).
Compared with the current standard of 120° rectangular wave has the following advantages:
- Ability to work with a wider range of supply voltage and frequency.
- Most of the energy efficiency and energy conservation.
- More soft start, lower noise and vibration.
- more control.
Air purification system is provided with a high-efficiency air conditioner ionizer that produces millions of negative ions that neutralize all the harmful elements present in your home. Negatively charged ions attract the dust particles, bacteria, mold spores and viruses, neutralize them, supporting chichtotu and freshness of the air in the room.
The ionizer is usually located on the left side of the housing of the indoor unit under the blinds (see photo below). On some series of domestic and semi-industrial split systems, it can be installed optionally)
Its a electronical function of Main PCB and self-diagnostic system into AC.
When pipe-temperature sensor at inlet line of evaporator will indicate highest temperature, system will indicate “EC” code in a display of indoor units, its mean “ask for service centre for visit maintance team with leakage detectors and tools”
Mode is activated with the remote control and provides a comfortable environment for a peaceful and deep sleep during the 7-hour cycle with a temperature change of reference values, as well as setting the minimum noise level and economical energy consumption. After that, the temperature returns to the originally specified value.
Increased heat. This unit uses the heat exchangers with tubes of a special design, the inner surface of which has trapezoidal notches “Innergrove cooper”, which provides maximum heat transfer surface area increased. Due to this heat increases by 28%, reduced power consumption, and hence increases the efficiency of the system.
Low-temperature (season) set – used for the operation of the air conditioner in cooling mode at low ambient temperatures (usually provided in the air conditioner as an optional feature). The kit includes: the controller of the outdoor unit fan motor, compressor crankcase heater and heater drain line.
In some series of inverter split systems this option is implemented in hardware and software, thus if there is a need to use the air conditioner in the winter for cooling, you must install only drain the heater.
ON-OFF Switch: With the reserved ports, a remote switch can be easily connected to a realize remote control. Alarm Port: The built-in PCB can output alarm signal, which makes setting up an external alarm light or vibration gauge possible.
The Indoor Unit
- Model Name: MCD-48HRDN1-Q
- Power Options, V/Hz/Ph: 220/50/1
- Cooling Power: 4.020… 16.070
- Heating Capacity: 4.400… 17.580
Power consumption, kW
- Cooling: 1.310… 6.040
- Heating: 1.040… 5.550
- Air flow rate, m³/h: 1,750… 1,350
- Sound Pressure Level, dB(A): 52.00… 46.00
- Drain pipes diameter, mm: 32 mm
- Panels Colour: White
- Panel Size (W×H×D), mm: 950 × 55 × 950
- Panel Weight, kg: 5.00
- Without Package: 840 × 245 × 840
- in Multiples: 900 × 265 × 900
- Net Weight: 27.00
- Gross Weight: 31.00
The outdoor Unit
- Model Name: MOU-48HDN1-R
- Compressors Type: Inverter
- Compressor: GMCC ROTARY
- Freon Type: R410A
- Freon Weight, kg: 3.65
- Power Options, V/Hz/Ph: 380/50/3
- Sound Pressure Level, dB(A): 65.00
Diameter Pipes, mm
- Liquid: 9.52
- Gas: 19.00
- Min length of main line, m: 3
- Max length of main line, m: 50
- Max vertical drop, m: 25
- Without Package: 946 × 810 × 410
- in Multiples: 1090 × 865 × 500
- Net Weight: 74.00
- Gross Weight: 80.00
