Improved engagement with intuitive interaction
Samsung’s QB13R-T touch-enabled small display provides a unique store experience and improves customer engagement, offering customers content up close in a compact design. Designed for professional use, it enables efficient content operation and reliable performance for any business use.
Fast, effective touch capabilities
With integrated capacitive touch functionality, the QB13R-T provides a user-friendly experience. Its 10-point multi-touch and fast response time powers an intuitive interface that allows for customer-driven search and action, creating new customer interactions and driving purchase.
Crisp and visible content
The display supports 1920×1080 FHD resolution, displaying crisp and easy-to-read content. This is enhanced by a non-glare panel which always delivers clear content in any ambient light. These innovative features are supported by reliable 16/7 operation, suitable for professional use.

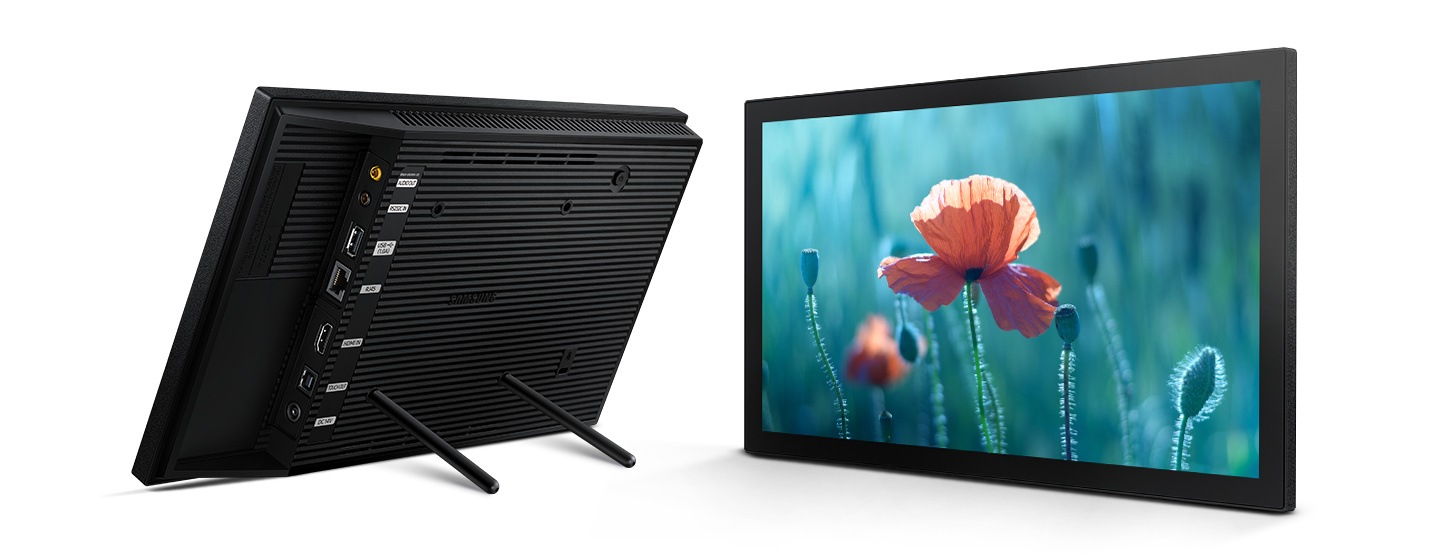

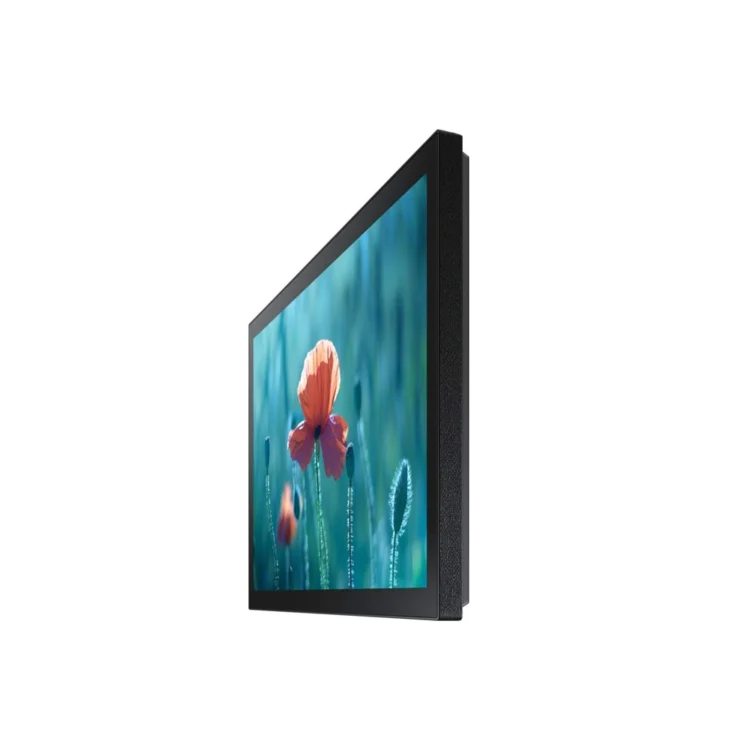

Slim, smart design

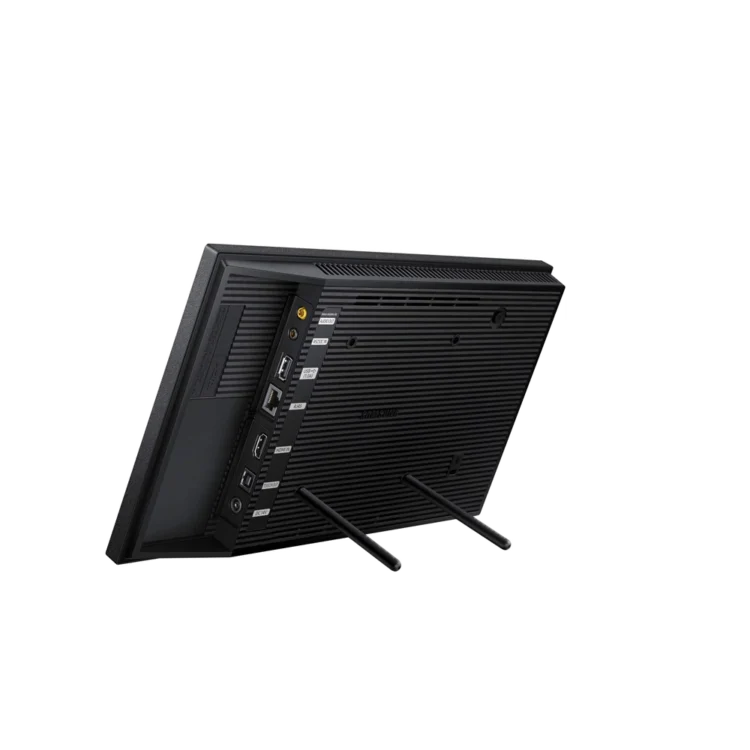

The compact and slim design of the QB13R-T allows for efficient space utilization, even in compact locations. A sleek back design makes the display optimal for both wall mounting or simply standing, while the connectivity, content play and device controls are easy to operate.
Powerful content playback
With an embedded MagicINFO S player, backed by TIZEN, the QB13R-T allows efficient and seamless playback without any external media player. SSSP also allows easy content development through reinforced compatibility with multiple web formats.

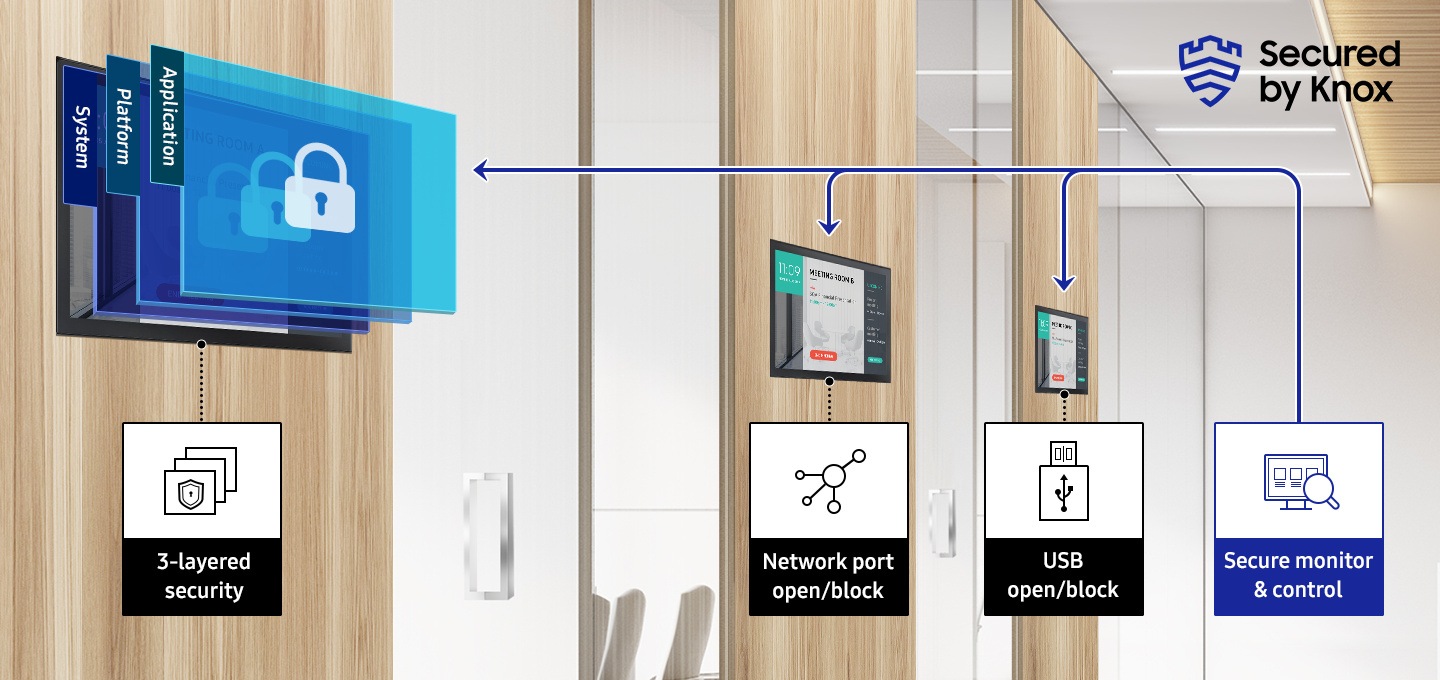

Comprehensive security setup
The powerful Knox security system provides rigid, three-layer security, offering airtight protection at the application, platform and system level, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorized access.

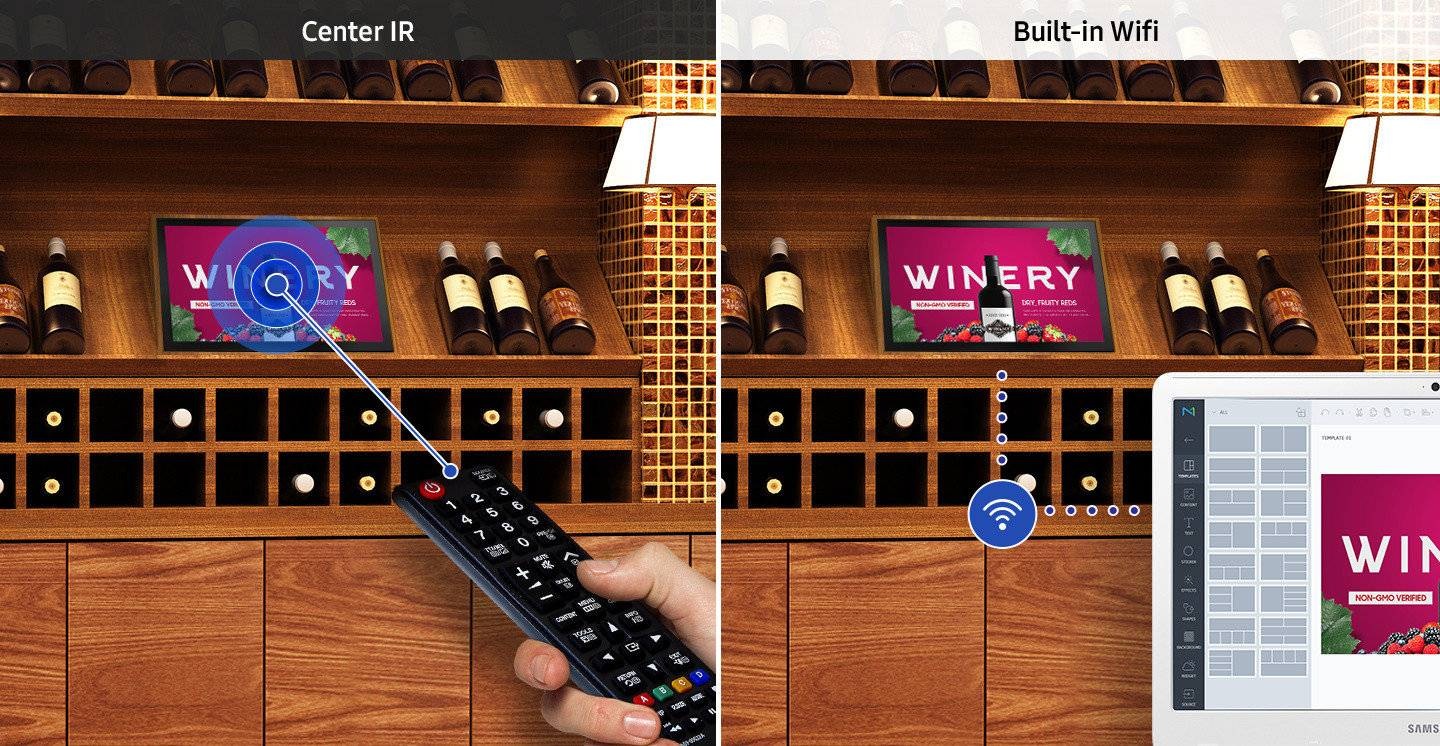

Convenient, clean display control
With center IR, each display receives IR signals direct to the panel, allowing easy and convenient remote control even with a tailored installation. When mounted, display doesn’t require an IR receiver cabling extension. Built-in Wi-Fi allows wireless remote management for both content and display.
Safe operation, reliable performance
The QB13R-T is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.
* IP5x : Product operation is not guaranteed when exposed to particular types of dust, such as metal dust.
Specifications
-
Resolution1,920 × 1,080
-
Brightness (Typical)250
-
Contrast Ratio600:1
-
Viewing Angle (H/V)178/178
-
Response Time8ms
-
Dynamic Contrast Ratio10000:1
Specifications Detail
Display
- Diagonal Size13″
- Panel TypeADS
- Resolution1,920 × 1,080
- Pixel Pitch (H×V, mm)0.153 × 0.153
- Brightness (Typical)250
- Contrast Ratio600:1
- Viewing Angle (H/V)178/178
- Response Time8ms
- Color Gamut45%
- Glass Haze25%, 10%(glass)
- H-Scanning Frequency30~81kHz
- Maximum Pixel Frequency594MHz
- V-Scanning Frequency48~75Hz
- Contrast Ratio (Dynamic)10000:1

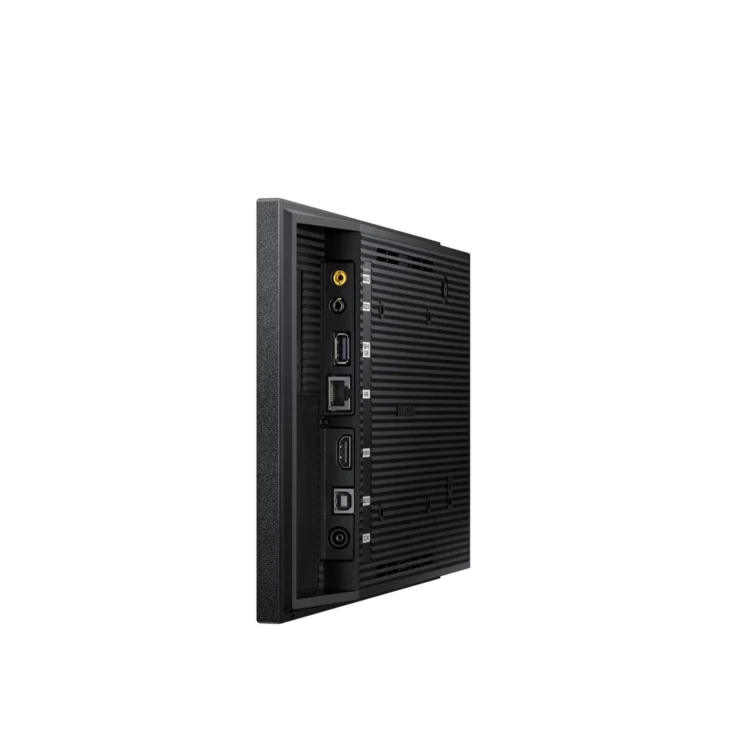

Connectivity
- HDMI In1
- DP InNo
- USB2
- IR InNo
- HDBaseT InNo
- Audio InNo
- Audio OutStereo Mini Jack
- Video OutNo
- RS232 InYes
- RS232 OutNo
- RJ45 InYes
- RJ45 OutNo
- WiFiYes
- 3G DongleNo
Power
- Power SupplyAC100-240V 50/60Hz
- Power Consumption (On Mode, W)27.5
- Power Consumption (Sleep Mode, W)0.5
Dimensions
- Set Dimension (W×H×D, mm)322 × 193.5 × 29.8
- Package Dimensions (W×H×D, mm)376 × 132 × 248
Weight
- Set Weight1.1 kg
- Package Weight2.0 kg
Operation Conditions
- Temperature0℃~ 40℃
- Humidity10 ~ 80%, non-condensing
Mechanical Specification
- VESA Mount (mm)100 × 100
- Bezel Width (mm)13.1
- Frame MaterialNon-Glossy
General Feature
- External Memory SlotNo
Optional Feature
- MountNo
- StandInbox(Simple Stand) (2ea)
Internal Player (MagicInfo)
- MagicInfo Daisychain Videowall SupportNo
Certification and Compliance
- EMCClass B
- Safety60950-1
