Stylish ARTCOOL Design

Inverter Compressor With 10 Year Warranty
-
10 Year Warranty
Verification obtained from TUV Rheinland for 10-year product life cycle.
-
TUV Rheinland
TUV Rheinland, Long Term Accelerated-reliability Test & High Marginal Test.
*1 year warranty on the parts and labour on the product, with an additional 10 years parts only warranty on the Inverter compressor of Single Wall-Mount Air Conditioner and Floor-Standing Air Conditioner.

Energy Saving & Fast Cooling

Active Energy Control

Ionizer
*Test chamber size : 52m3 volume.
*Test results may differ from results in actual room conditions.


Smart Diagnosis

Low Noise

Quick and Easy Installation
-
Jet Cool
The optimized design of the air outlet provides more powerful airflow, which cools the room quickly.
-
Auto Cleaning
The comprehensive auto cleaning function prevents the forming of bacteria and mold on the heat exchanger and thus provides a more pleasant and comfortable environment for the user.
-
Micro Dust Filter
The Micro Dust Filter captures and eliminates harmful micro-particles, including bacteria and dust, in order to deliver fresh, clean air.
-
Vertical 6 Steps Louver
Users can choose the vane direction among 6 preset positions to meet the exact wind blow direction you desire.
-
4 Way Swing
LG air conditioners deliver cool air to every corner of your room. The 4 way swing function blows the air quickly and efficiently in many directions.
-
Gold FinTM
The Gold FinTM ensures that the surface is more resistant to corrosion and enhances the durability of heat exchanger for a much longer period.
-
Comfort Sleep
Comfort Sleep mode ensures the utmost comfort sleep environment by automatically adjusting 3 different functions(Indirect airflow/7hr off time set/Soft wind & sleep time logic),with one click.
-
DUAL Protection Filter
The DUAL Protection Filter captures dust size over 10?.

-
- CAPACITY
- 1.5HP
-

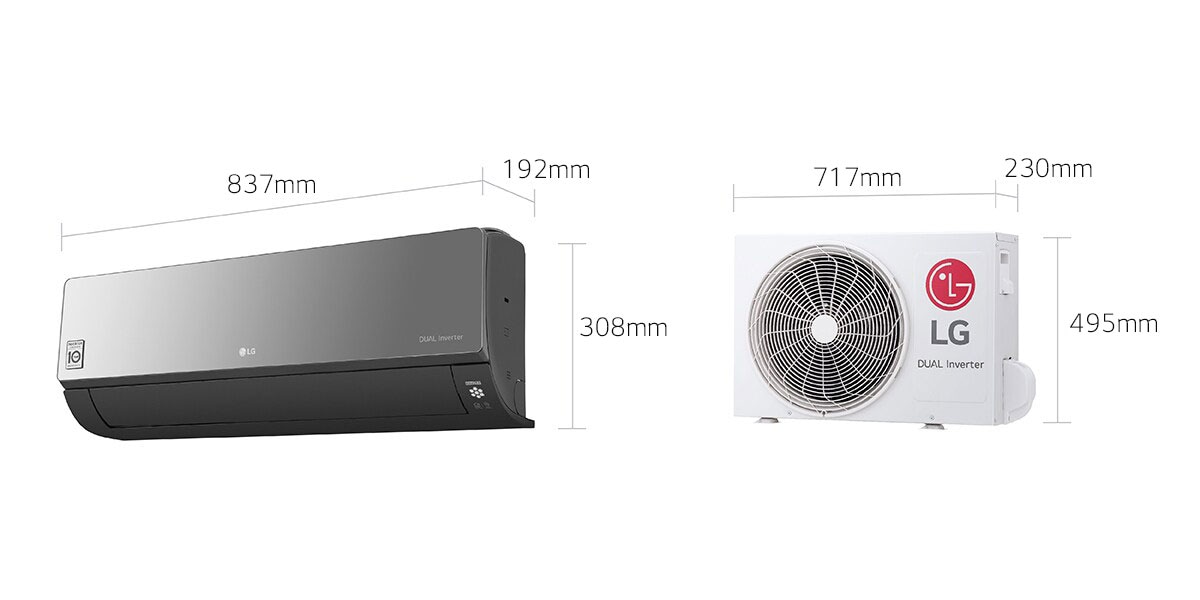

- DIMENSIONS (W × H × D)
- 837 × 308 × 192
-
- COMPRESSOR
- Dual Inverter
-
- FEATURE
- Ionizer
-
- Type
- Wall Mount
- Color
- Black
-
- Smart Function
- ThinQ™
-
- Cooling-Min (kW)
- 0.59
- Cooling-Rated (kW)
- 3.52
-
- Cooling-Max (kW)
- 3.99
- Cooling-Min (Btu/h)
- 2,000
-
- Cooling-Rated (Btu/h)
- 12,000
- Cooling-Max (Btu/h)
- 13,600
-
- Cooling-Min (W)
- 200
- Cooling-Rated (W)
- 1,095
-
- Cooling-Max (W)
- 1,250
-
- Cooling-Min (A)
- 1.10
- Cooling-Rated (A)
- 5.80
-
- Cooling-Max (A)
- 6.20
-
- EER(W/W)
- 3.21
- EER ((Btu/h)/W)
- 10.96
-
- Power Supply (Ø , V , Hz)
- 1, 220 ~ 240, 50
-
- Available Voltage Range (V)
- 187 ~ 276
-
- Cooling (%)
- 90.0
-
- Moisture Removal (l/h)
- 1.25
-
- Air Flow Rate – Cooling, Max / H / M / L (㎥/min)
- 13/10/6.6/4.2
- Sound Pressure Level – Cooling, Max / H / M / L / SL (dB(A))
- 41/35/27/21
-
- Dimensions (W × H × D) – Net (mm)
- 837 × 308 × 192
- Dimensions (W × H × D) – Shipping (mm)
- 914 x 388 x 261
-
- Weight – Net (kg)
- 9.9
-
- Exterior Colour Code
- Munsell 7.5PB 0.2/20 (RAL 9005)
-
- Air Flow Rate – Max (㎥/min)
- 28.0
- Fan Motor Speed – Cooling, Min ~ Max (rpm)
- 850~850
-
- Sound Pressure Level – Cooling, Rated (dB(A))
- 50
- Dimensions (W × H × D) – Net (mm)
- 717 x 495 x 230
-
- Dimensions (W × H × D) – Shipping (mm)
- 837 x 530.5 x 317
- Weight – Net (kg)
- 24.0
-
- Weight – Shipping (kg)
- 25.9
- Max. Fuse Size (A)
- 15
-
- Exterior Color Code
- Munsell 9.54Y 8.34/1.31 (RAL 9001)
- Operation Range – Cooling (℃ DB)
- 18 ~ 48
-
- Circuit Breaker (A)
- 15
-
- Power Supply Cable (No. × ㎟)
- 3 x 1.0
-
- Power Supply to Unit
- Indoor
-
- Power and Communication Cable (No. × ㎟)
- 4 x 1.0
-
- Size – Liquid (mm)
- Ø 6.35
- Size – Gas (mm)
- Ø 9.52
-
- Connections Method – Indoor / Outdoor
- Flared/Flared
-
- Drain Hose Size – O.D, I.D (mm)
- 21.5,16.0
-
- Piping Length – Min / Standard / Max (m)
- 3/7.5/15
- Piping Length – No Charge (m)
- 7.5
-
- Max. Elevation Difference (m)
- 10
- Piping Connection Heat Insulation
- Both liquid and gas pipes
-
- Type
- R410A
- Pre Charge (g)
- 670
-
- Additional Charge (g/m)
- 20
- Control
- Capillary
-
- Global Warning Potential
- 2087.5
- t-CO₂ eq
- 1.399
-
- Indoor / Outdoor
- SJ/UA3
-
- Type
- Twin Rotary
- Model
- GST102MAA
-
- Motor Type
- BLDC
- Oil Type / Maker
- POE (RB68A)/Sun Oil or Jx Nippon
-
- Oil Charge
- 280
- Manufacturer / Country of Origin
- LG Electronics/China
-
- Type
- Cross Flow Fan
- Motor Output- W
- 30
-
- Type
- Propeller Fan
- Motor Type
- AC
-
- Motor Output- W
- 28
- Motor Insulation
- Class E
-
- Motor Enclosure / Ingress Protection
- TEAO/IP24
-
- Evaporator – Material, Tube / Fin
- Cu/Al
- Evaporator – (Φ × Row × Column × FPI/FPDM × L) × Qty (1)
- (ø7 × 2 × 15 × 21 × 616.8) × 1
-
- Evaporator – Corrosion Protection
- PCM
- Condenser – Material, Tube / Fin
- Cu/Al
-
- Condenser – (Φ x Row x Column x FPI/FPDM x L) × Qty (1)
- (ø5 × 2 × 22 × 21 × 686) × 1
- Condenser – Corrosion Protection
- Gold
