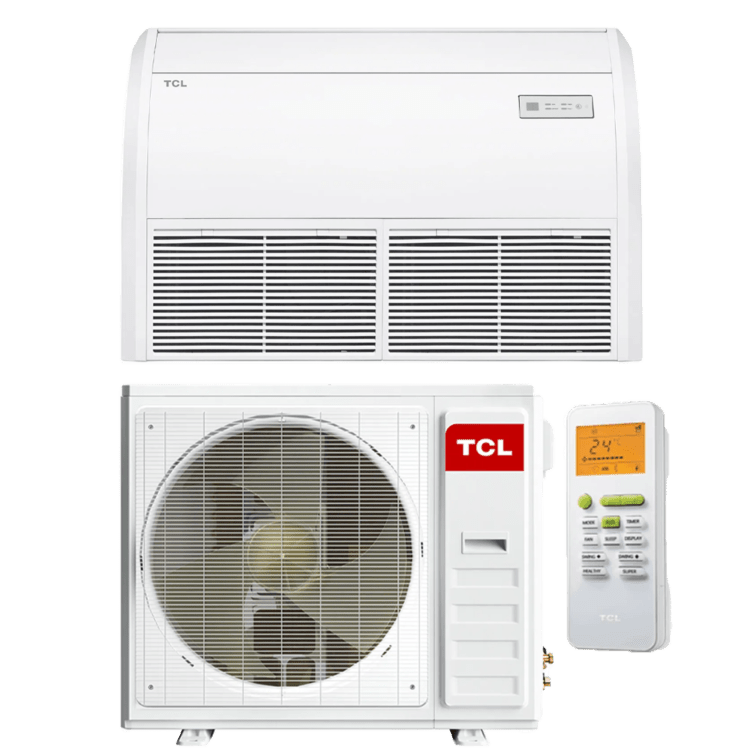

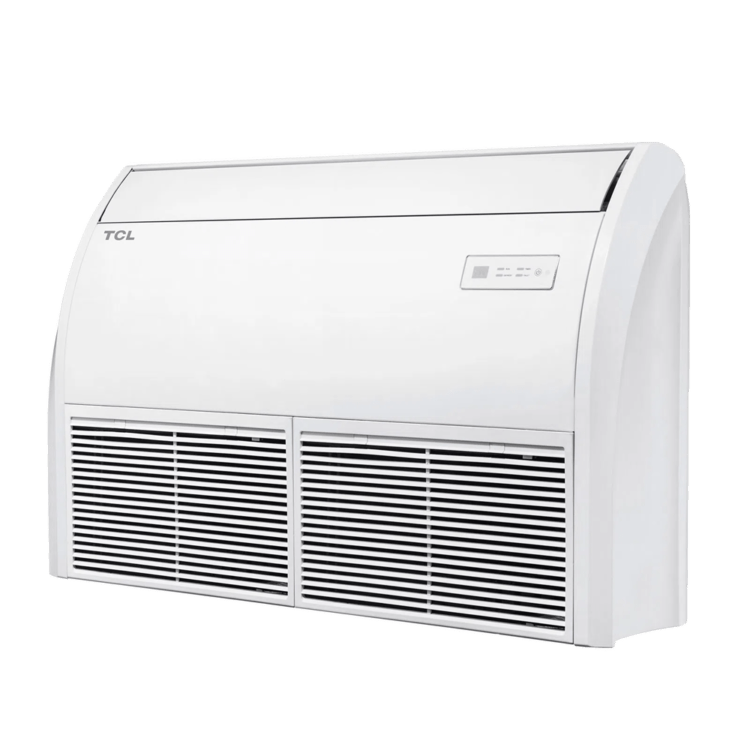

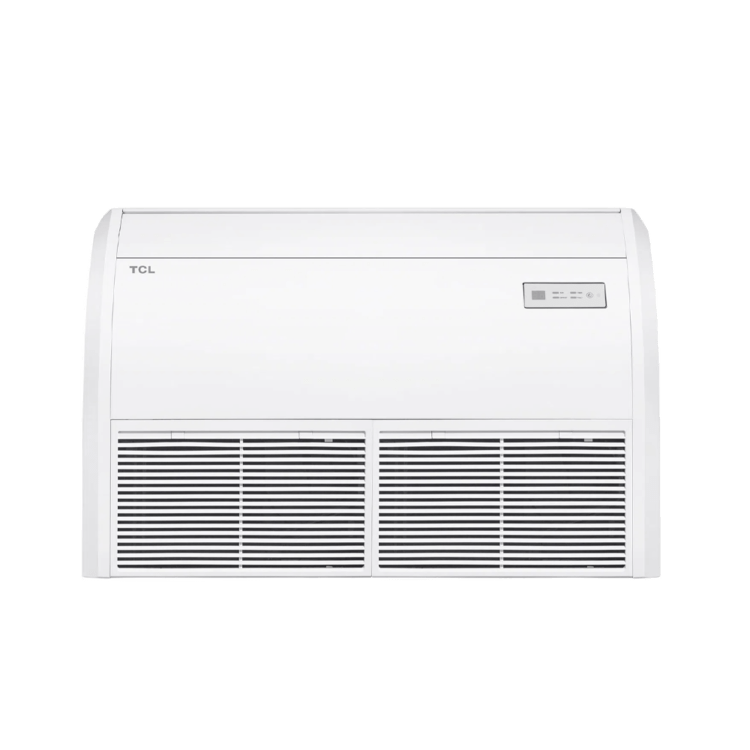

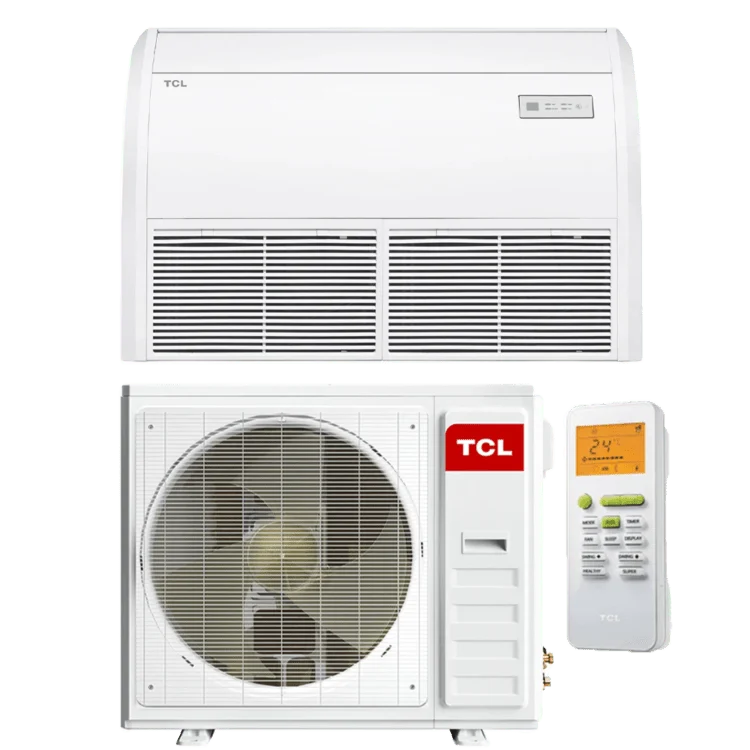

TCL 3.5hp R410 Ceiling & Floor Type AC [TCC-36ZHRA/DV(02)]

TCL 3.5hp R410 Ceiling & Floor Type AC [TCC-36ZHRA/DV(02)] - Image 2

TCL 3.5hp R410 Ceiling & Floor Type AC [TCC-36ZHRA/DV(02)] - Image 3

TCL 3.5hp R410 Ceiling & Floor Type AC [TCC-36ZHRA/DV(02)] - Image 4

TCL 3.5hp R410 Ceiling & Floor Type AC [TCC-36ZHRA/DV(02)] - Image 5

TCL 3.5hp R410 Ceiling & Floor Type AC [TCC-36ZHRA/DV(02)] - Image 6

ACs

TCL 3.5hp R410 Ceiling & Floor Type AC [TCC-36ZHRA/DV(02)]

Full DC Inverter with AI
High Efficiency A++
75m Long Piping Length
Multi-Split Design
235mm Compact Design
3D Air Flow
Power off Memory Function
2 Direction Drainage

₵14,299 ~~₵15,799~~

TCC-36ZHRH/DVI(04)

Ceiling & Floor

· Full DC Inverter with AI
· High Efficiency A++
· 75m Long Piping Length
· Multi-Split Design
· 235mm Compact Design
· 3D Air Flow
· Power off Memory Function
· 2 Direction Drainage

Ceiling & Floor

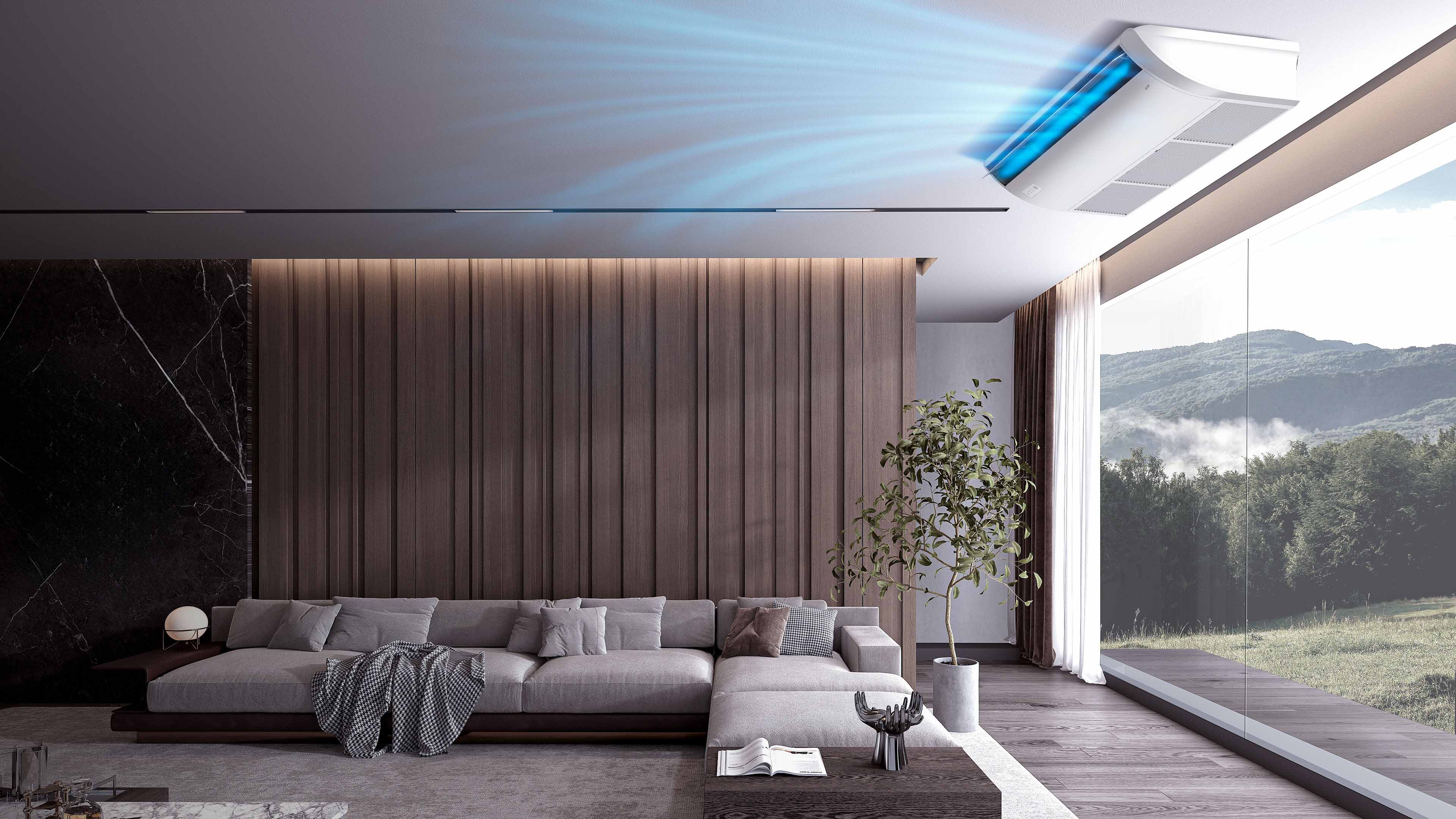

TCL Light Commercial AC

Full DC Design

Select DC inverter compressor and motor to ensure better energy saving and rellability of air conditioning system.

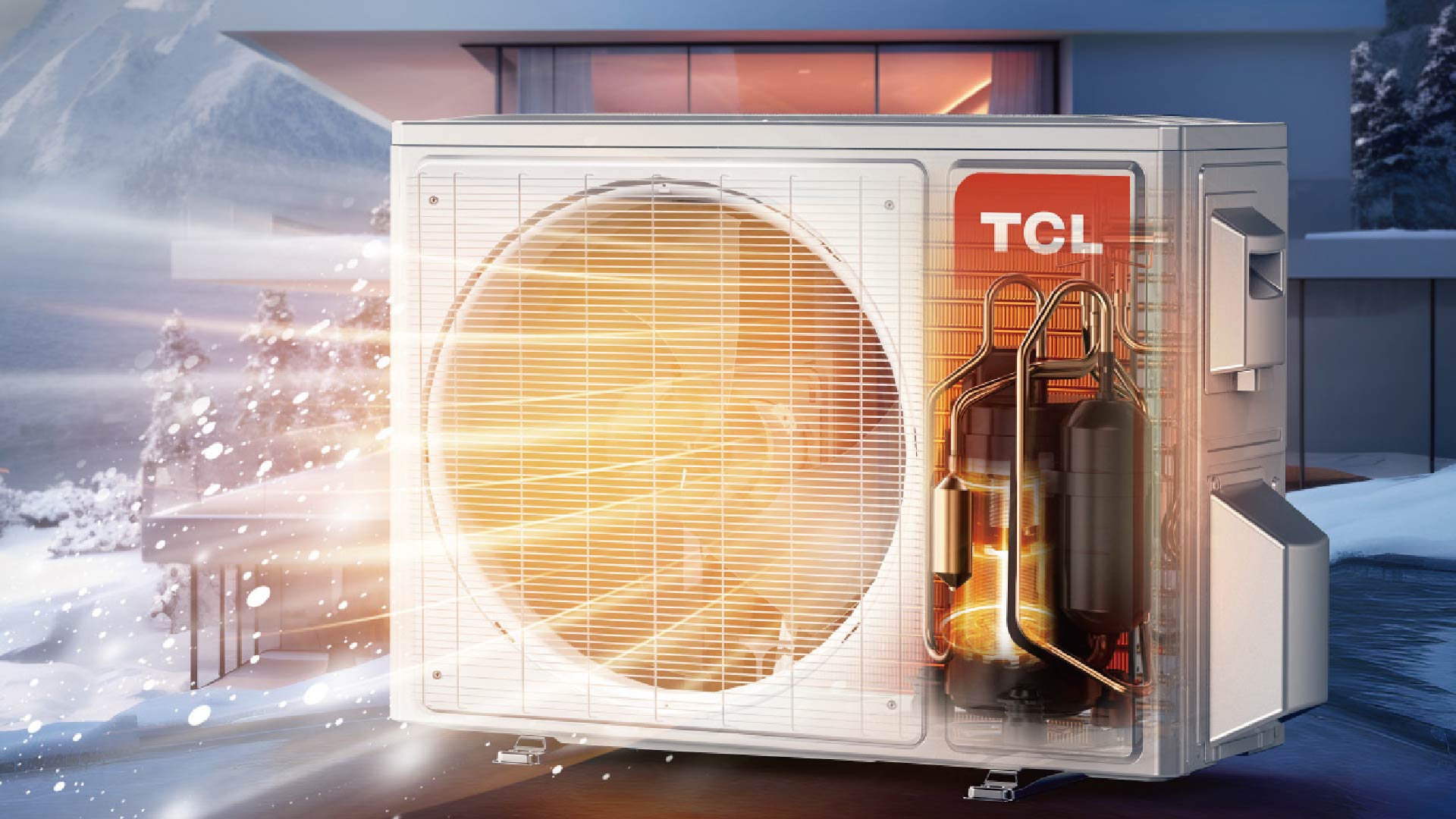

Snow blowing

Outdoor unit fan will blow in opposite during the winter to avoid snow accumulated on Fins

Wide Range Operation from -25℃ to 58℃

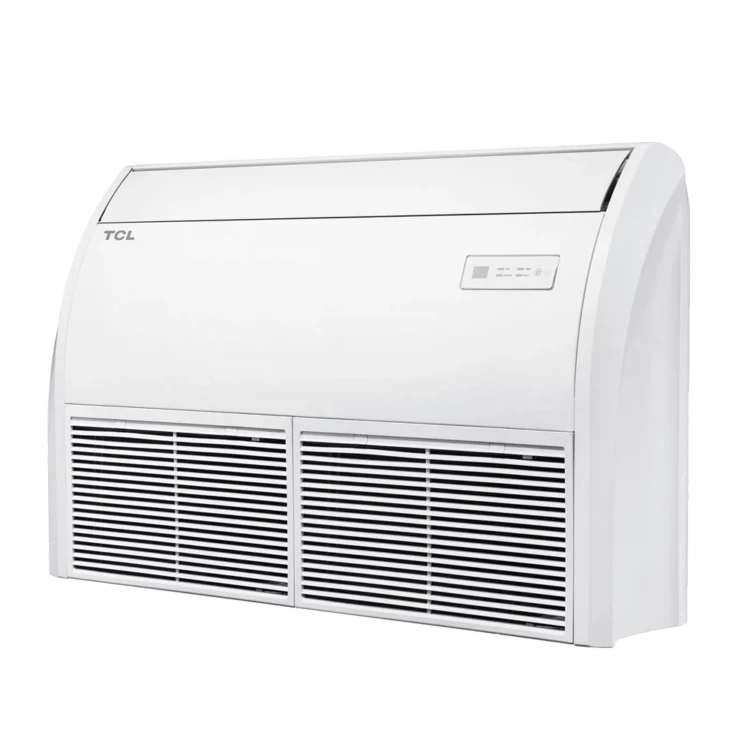

Flexible Installation

Flexible installation method, ceiling or landing maximum for you to save space.

Ceiling Mounted

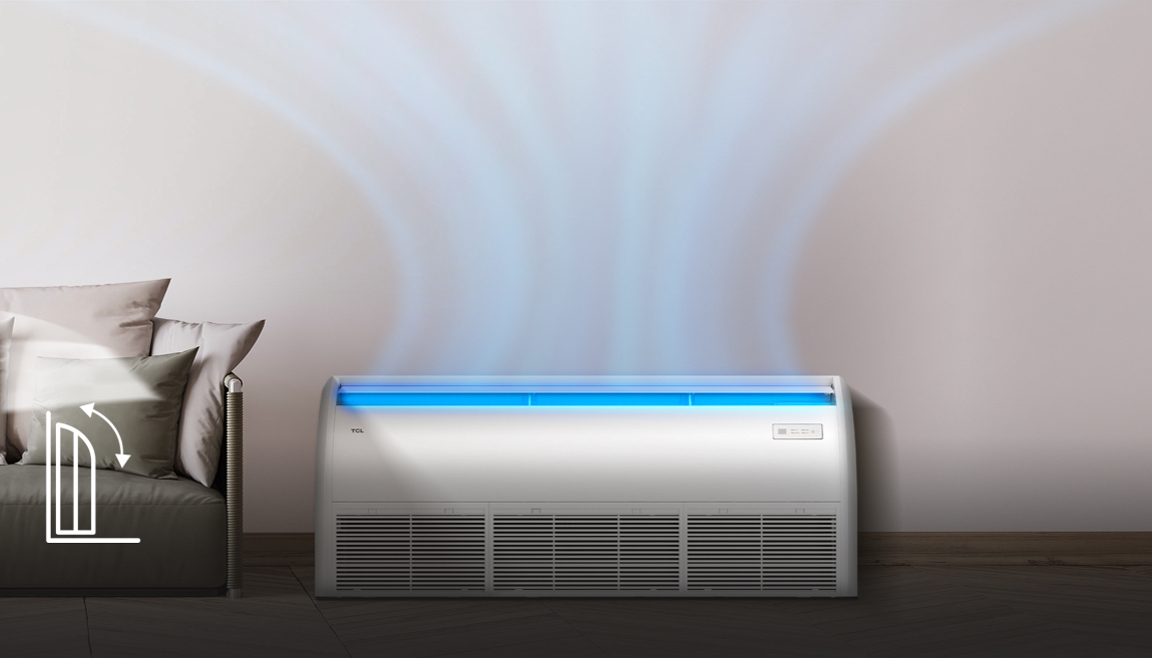

Floor Mounted

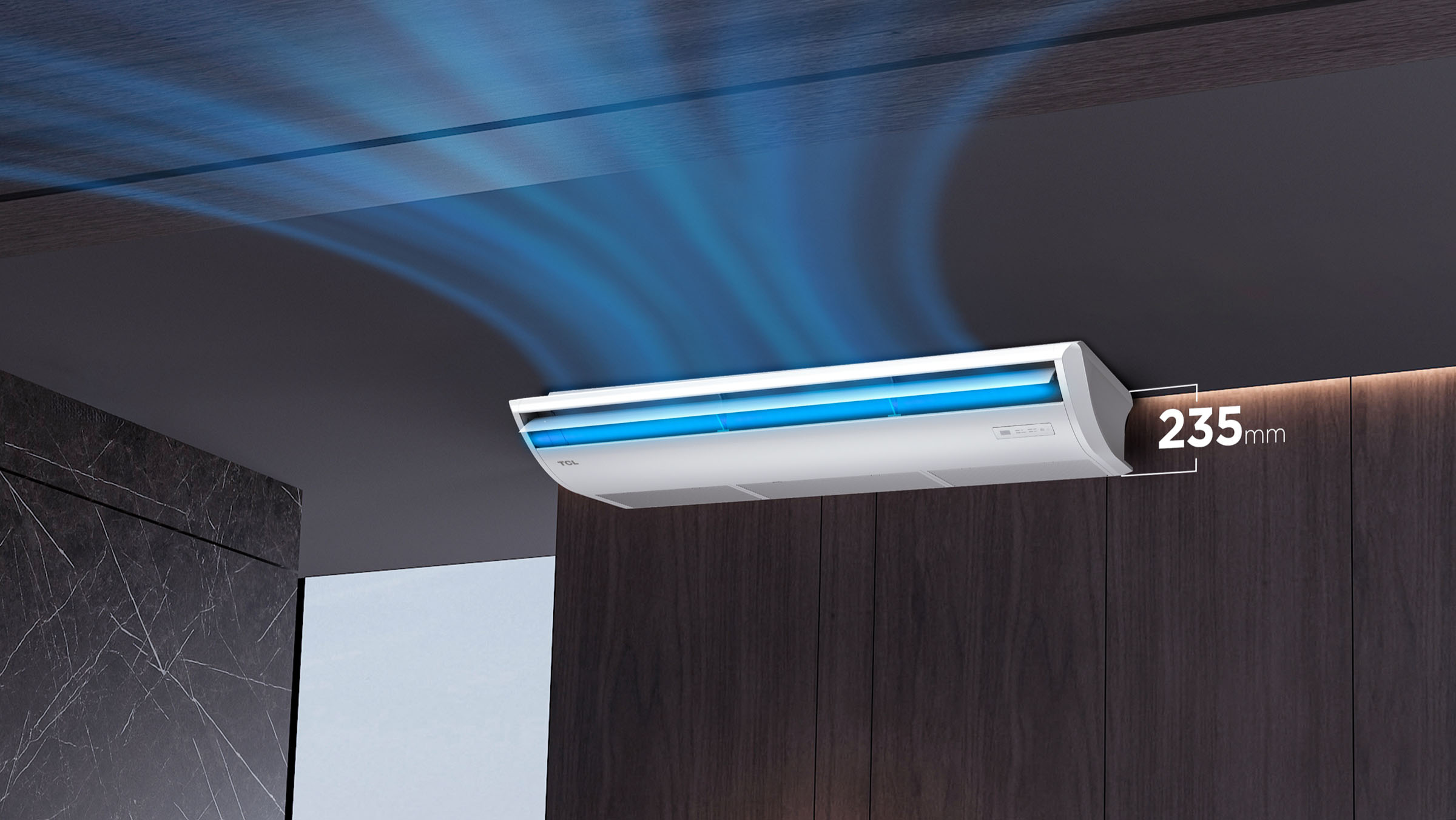

Ultra-Thin Design

Compact design which fits for various room styles.

104° Wide Range of Air Flow

With unique swing design, the wind direction can be adjusted at will, to achieve 3D air supply, which makes the room temperature distribution more uniform.

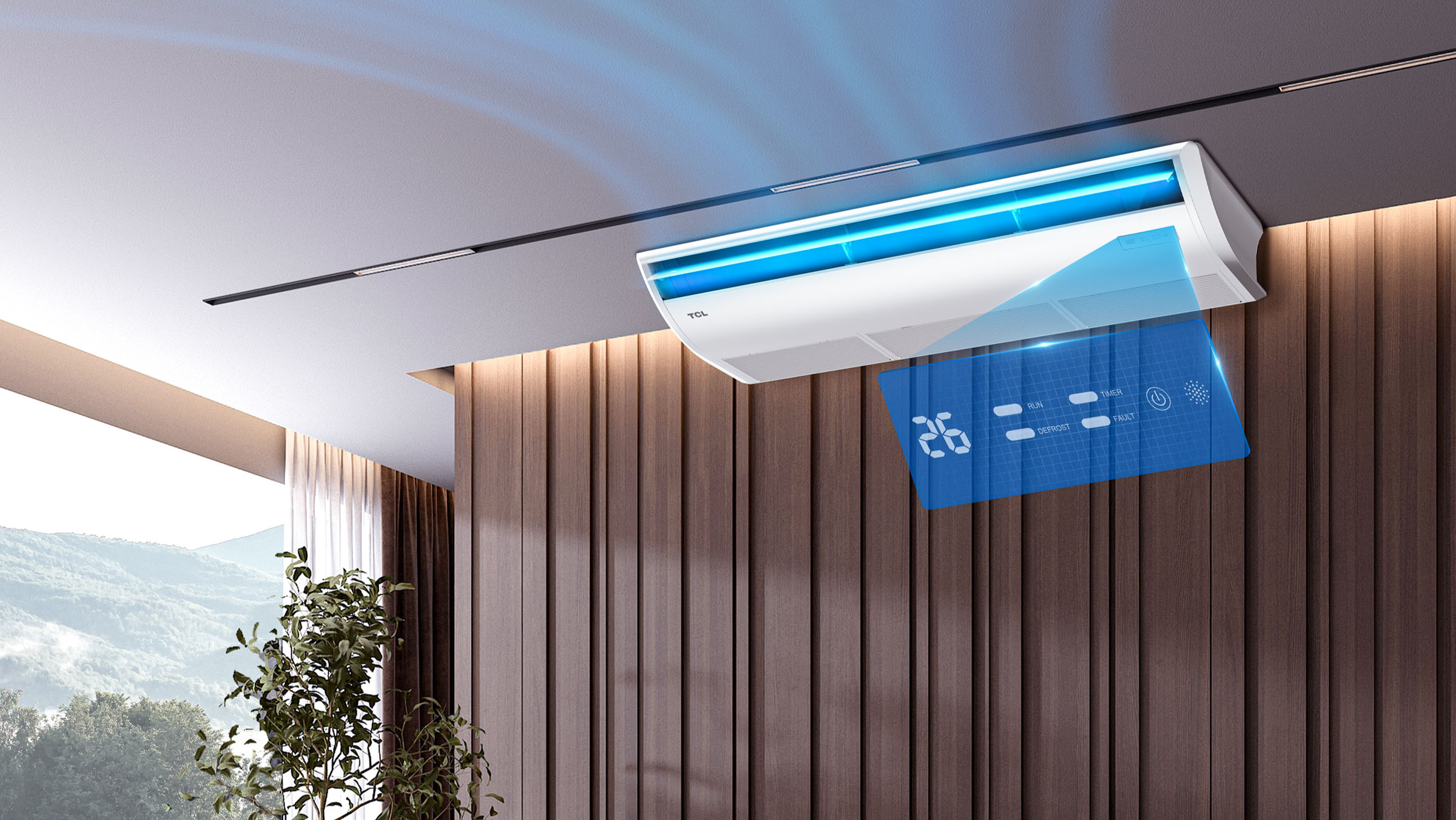

LED Display

Fashionable design with clear LED display of temperature and error codes.

Rapid Start

When start the unit, it will run highest compressor frequency to realize rapid cooling or heating

Multi control

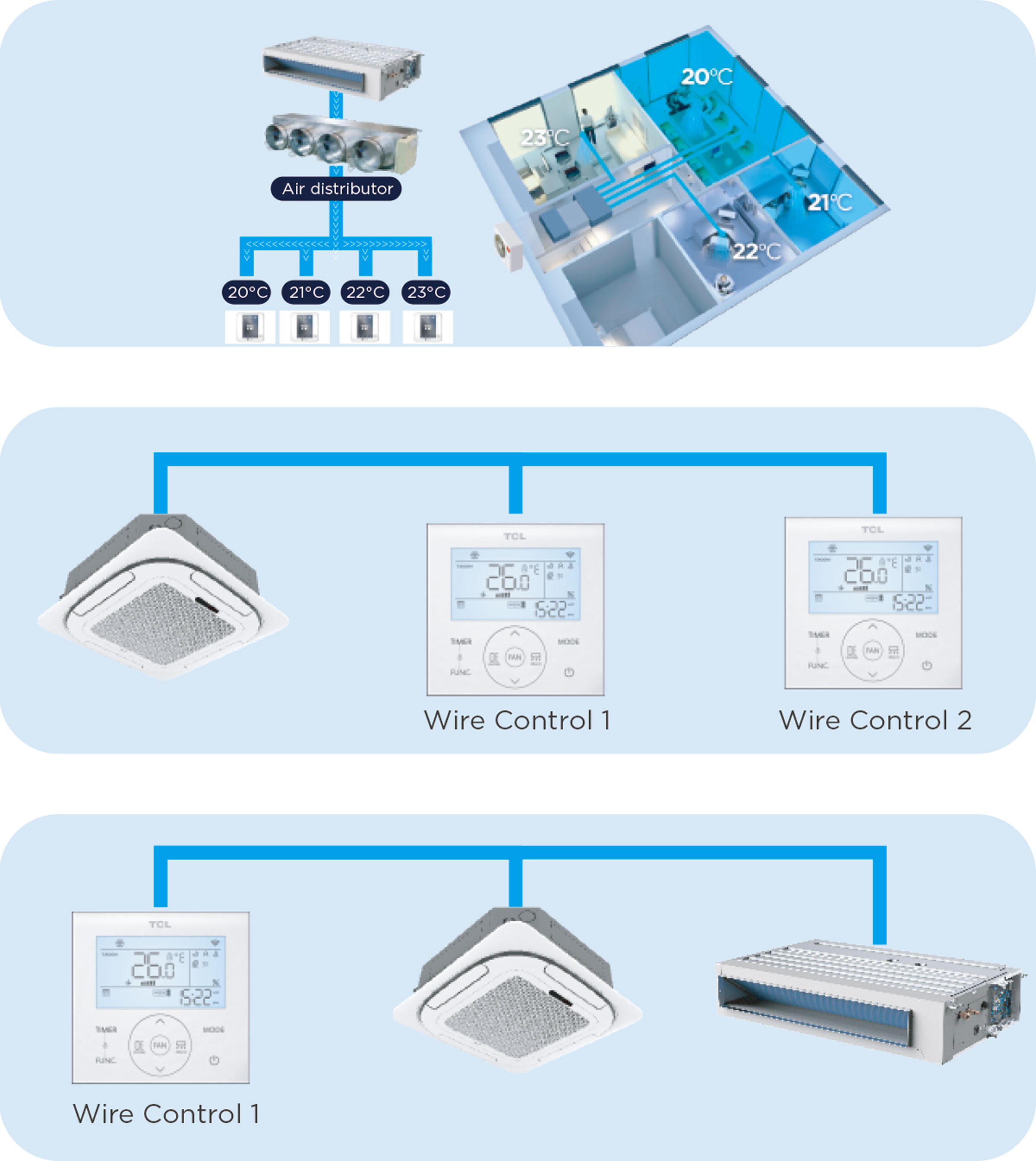

Air-zone Solutions

Compatible with the 3rd party zoning controller, realize independently adjustment for each room.

Double Wired Controller

The same air conditioner can be controlled by two wire control-lers by setting the primary and secondary wire controllers, you can adjust the most comfortable temperature for your child without going to the child’s room.

One Wired Controller

TCL also offers a solution that allows a single controller to operate multiple indoor units simultaneously, enabling central-ized management of your home’s entire air conditioning system. This improves energy efficiency, reduces power consumption, and delivers comfort and convenience through-out your space.

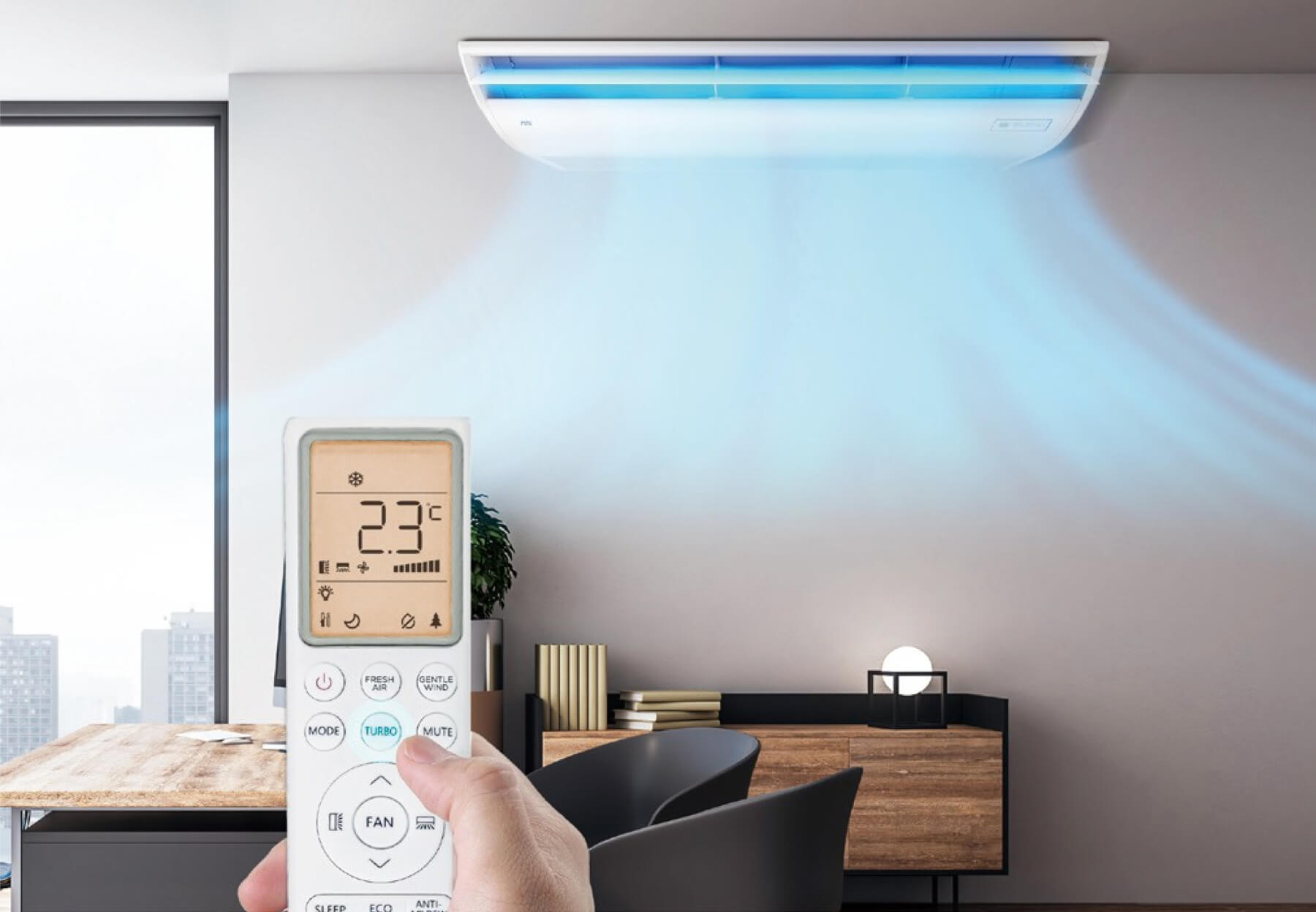

Wired Controller

It is especially useful in hotel rooms where guests can easily adjust the temperature and settings according to their preference.

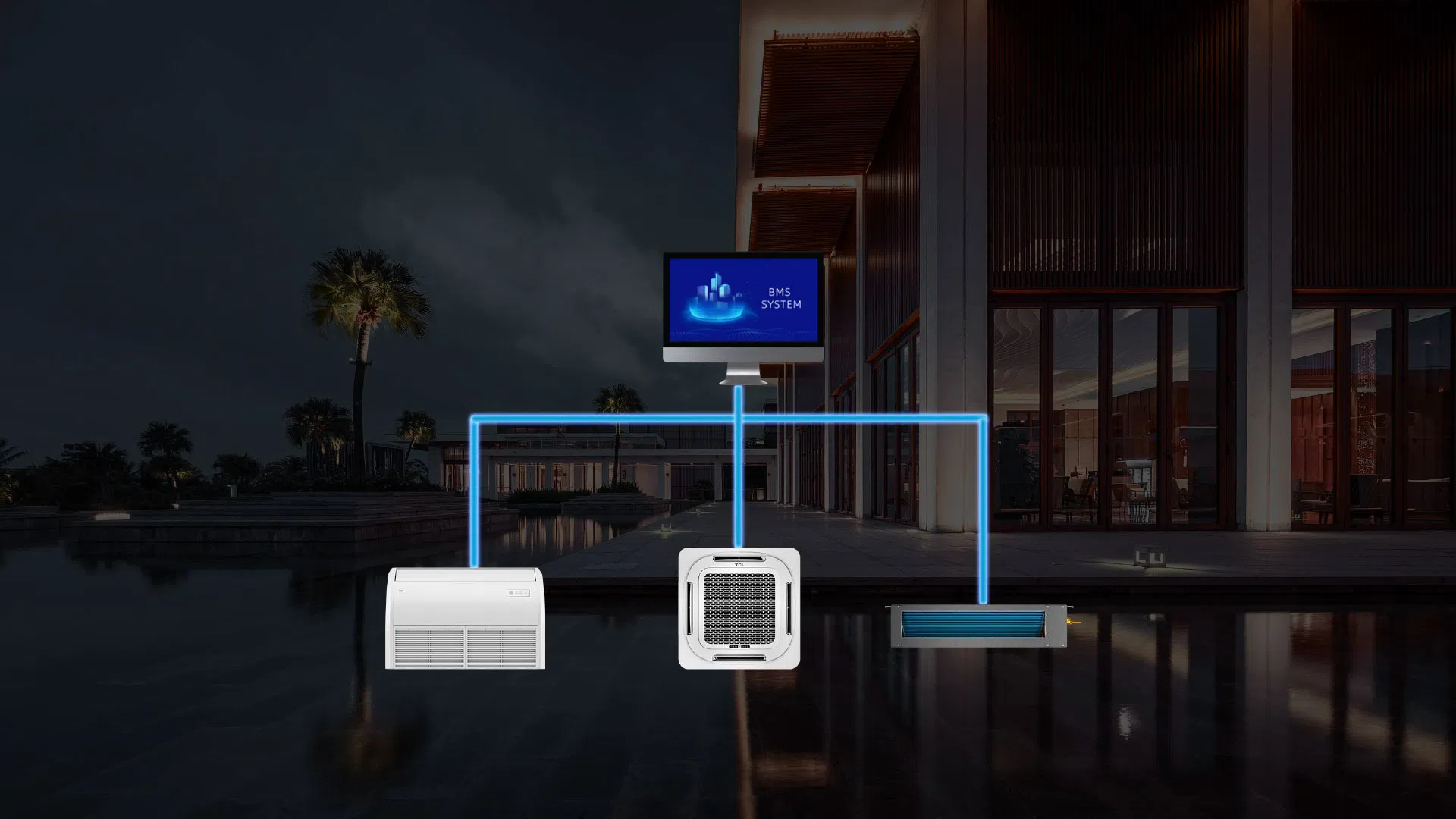

Compliant to BMS System

It is compliant to building management system for more convenient monitoring and control

SPECIFICATIONS

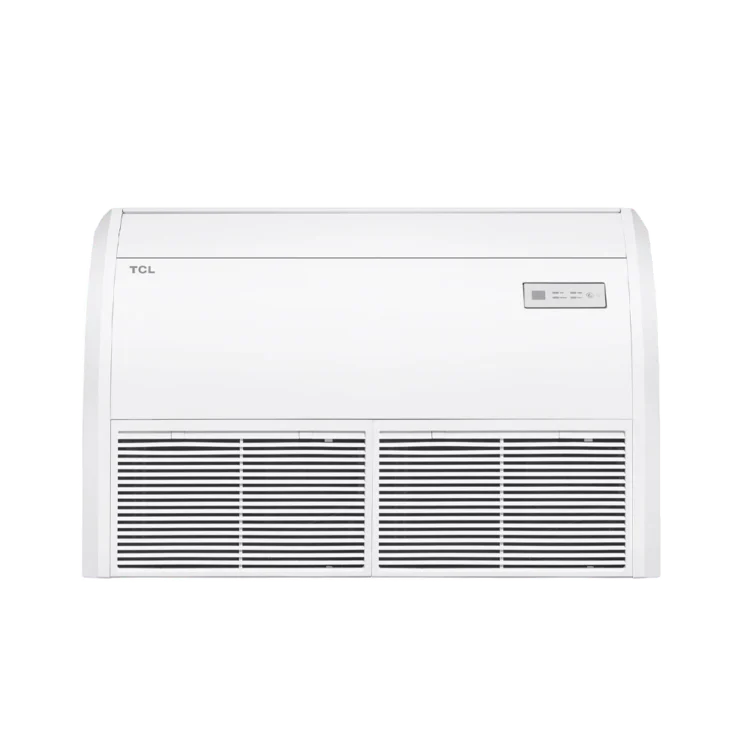

Indoor Unit

Power supply side: Outdoor
IDU Power Supply (V~,Hz,Ph): 220-240V/50Hz/1P
Capacity – Cooling (Btu/h): 36000(10500～42000)
Capacity – Cooling (W): 10550(3080～12300)
Capacity – Heating (Btu/h): 40000(11200～46000)
Capacity – Heating (W): 11720(3280～13500)
Capacity – Pdesignc (W): 10550
Capacity – Pdesignh average (W): 8500
Capacity – Declare capacity(-10℃) (W): 7200
Capacity – Back up heating capacity(-10℃) (W): 1300
Electric Data（T1）- Rated Cooling Power Input (W): 3460(860~4600)
Electric Data（T1）- Rated Heating Power Input (W): 3460(840~3700)
Electric Data（T1）- Rated Cooling Current (A): 15.8(4.1~21.0)
Electric Data（T1）- Rated Heating Current (A): 15.8(4.1~16.9)
Annual energy consumption – Cooling (kwh/a): 640
Annual energy consumption – Average (kwh/a): 2920
Performance（T1）- EER (W/W): 3.05
Performance（T1）- SEER (W/W): 6.1
Performance（T1）- Energy Class: A++
Performance（T1）- COP (W/W): 3.39
Performance（T1）- SCOP (W/W): 4
Performance（T1）- Energy Class: A+
Indoor Fan Fotor – Output Power (W): 132
Indoor Fan Fotor – Speed (Hi/Mi/Lo) (r/min): 1200/1080/980
Indoor Unit – Indoor Air Flow(Hi/Mi/Lo) (m³/h): 2000
Indoor Unit – Indoor sound power(S/H/M/L/Mute) (dB(A)): 65/61/58/55/52
Indoor Unit – Indoor sound power(Standard rating conditions) (dB(A)): 61
Indoor Unit – Indoor sound pressure(S/H/M/L/Mute) (dB(A)): 55/51/48/45/42
Indoor Unit – Indoor sound pressure(Standard rating conditions) (dB(A)): 51
Indoor Unit – Net Dimensions (W×D×H) (mm): 1275×675×235
Indoor Unit – Packing Dimensions (W×D×H) (mm): 1350×748×305
Indoor Unit – Net Weight (kg): 30
Indoor Unit – Gross Weight (kg): 35
Operation Temperature Range (℃): 16-31
Wired Controller: remote controller Optional Wired controller

Outdoor Unit

Case: 910C(φ7×2)
Type: heating pump
Power Supply (V,Hz,Ph): Indoor：220-240V/50Hz/1P Outdoor：220-240V/50Hz/1P\
Max. Input Consumption (W): 4600
Max. Current (A): 21
Air Flow Volume (CFM): 2766
Air Flow Volume (m³/h): 4700
Noise Level (dB (A)): 57
Noise Power Level (dB (A)): 67
Net Dimensions (W×D×H) (mm): 910×378×804
Packing Dimensions (W×D×H) (mm): 1022×480×835
Net Weight (kg): 52
Gross Weight (kg): 55
Refrigerant Type/Quantity – Type: R32
Refrigerant Type/Quantity – Charged Volume (factory) (kg): 1.7
Refrigerant Type/Quantity – addtional Volume/Beyond 5 meters (g/m): 32
Refrigerant Type/Quantity – CO2 equivalent (tonnes): 1.148
Design Pressure (MPa): 4.5
Refrigerant Piping – Liquid Side (mm): 3/8″
Refrigerant Piping – Gas Side (mm): 5/8″
Refrigerant Piping – Max. Length (m): 75
Refrigerant Piping – Max. Height (mm): 30
Ambient Temperature Range (Cooling/Heating) (℃): Cooling:-15-58/Heating:-25-24
Wire – Power Wiring (Outdoor) (m㎡): 3×2.5mm²+3×1.5mm²
Wire – Connection Wiring (IDU&ODU) (m㎡): 3×0.75mm²

SKU: TCC-36CHRA/DV(02)-37 Category: ACs Tags: ACS, Air Conditioners, O35HP, OINVERTERS

Brand	TCL
Cooling Capacity	3.5 hp
Air Conditioner Type	Ceiling & Floor

Indoor Unit

Power supply side: Outdoor
IDU Power Supply (V~,Hz,Ph): 220-240V/50Hz/1P
Capacity – Cooling (Btu/h): 36000(10500～42000)
Capacity – Cooling (W): 10550(3080～12300)
Capacity – Heating (Btu/h): 40000(11200～46000)
Capacity – Heating (W): 11720(3280～13500)
Capacity – Pdesignc (W): 10550
Capacity – Pdesignh average (W): 8500
Capacity – Declare capacity(-10℃) (W): 7200
Capacity – Back up heating capacity(-10℃) (W): 1300
Electric Data（T1）- Rated Cooling Power Input (W): 3460(860~4600)
Electric Data（T1）- Rated Heating Power Input (W): 3460(840~3700)
Electric Data（T1）- Rated Cooling Current (A): 15.8(4.1~21.0)
Electric Data（T1）- Rated Heating Current (A): 15.8(4.1~16.9)
Annual energy consumption – Cooling (kwh/a): 640
Annual energy consumption – Average (kwh/a): 2920
Performance（T1）- EER (W/W): 3.05
Performance（T1）- SEER (W/W): 6.1
Performance（T1）- Energy Class: A++
Performance（T1）- COP (W/W): 3.39
Performance（T1）- SCOP (W/W): 4
Performance（T1）- Energy Class: A+
Indoor Fan Fotor – Output Power (W): 132
Indoor Fan Fotor – Speed (Hi/Mi/Lo) (r/min): 1200/1080/980
Indoor Unit – Indoor Air Flow(Hi/Mi/Lo) (m³/h): 2000
Indoor Unit – Indoor sound power(S/H/M/L/Mute) (dB(A)): 65/61/58/55/52
Indoor Unit – Indoor sound power(Standard rating conditions) (dB(A)): 61
Indoor Unit – Indoor sound pressure(S/H/M/L/Mute) (dB(A)): 55/51/48/45/42
Indoor Unit – Indoor sound pressure(Standard rating conditions) (dB(A)): 51
Indoor Unit – Net Dimensions (W×D×H) (mm): 1275×675×235
Indoor Unit – Packing Dimensions (W×D×H) (mm): 1350×748×305
Indoor Unit – Net Weight (kg): 30
Indoor Unit – Gross Weight (kg): 35
Operation Temperature Range (℃): 16-31
Wired Controller: remote controller Optional Wired controller

Outdoor Unit

Case: 910C(φ7×2)
Type: heating pump
Power Supply (V,Hz,Ph): Indoor：220-240V/50Hz/1P Outdoor：220-240V/50Hz/1P\
Max. Input Consumption (W): 4600
Max. Current (A): 21
Air Flow Volume (CFM): 2766
Air Flow Volume (m³/h): 4700
Noise Level (dB (A)): 57
Noise Power Level (dB (A)): 67
Net Dimensions (W×D×H) (mm): 910×378×804
Packing Dimensions (W×D×H) (mm): 1022×480×835
Net Weight (kg): 52
Gross Weight (kg): 55
Refrigerant Type/Quantity – Type: R32
Refrigerant Type/Quantity – Charged Volume (factory) (kg): 1.7
Refrigerant Type/Quantity – addtional Volume/Beyond 5 meters (g/m): 32
Refrigerant Type/Quantity – CO2 equivalent (tonnes): 1.148
Design Pressure (MPa): 4.5
Refrigerant Piping – Liquid Side (mm): 3/8″
Refrigerant Piping – Gas Side (mm): 5/8″
Refrigerant Piping – Max. Length (m): 75
Refrigerant Piping – Max. Height (mm): 30
Ambient Temperature Range (Cooling/Heating) (℃): Cooling:-15-58/Heating:-25-24
Wire – Power Wiring (Outdoor) (m㎡): 3×2.5mm²+3×1.5mm²
Wire – Connection Wiring (IDU&ODU) (m㎡): 3×0.75mm²
