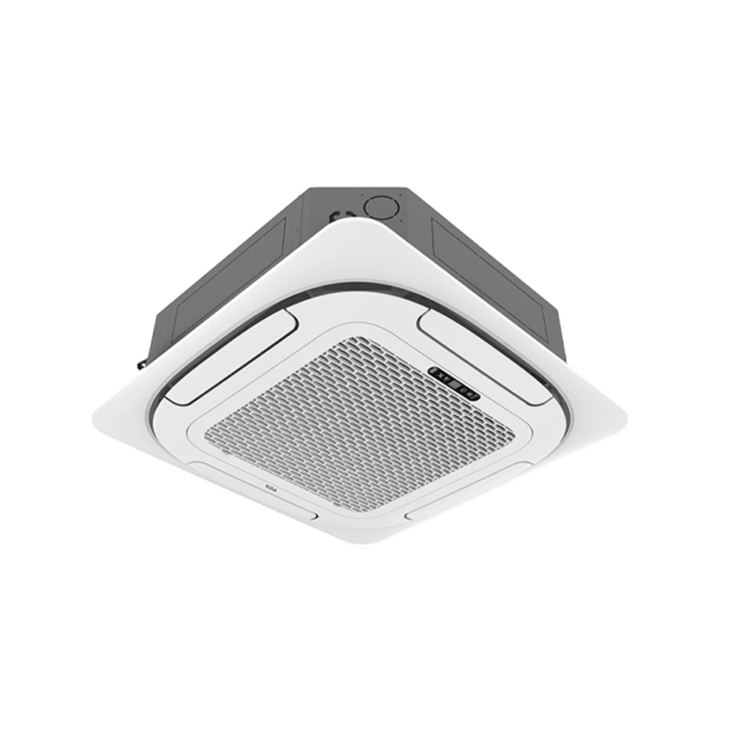

TCL 3.5hp R410 UNITARY Series Cassette Unit Inverter AC [TCC-36CHRA/DV(02)]

• Panel: MBQR-FC(360°)
• Power supply side: Outdoor
• IDU Power Supply (V~,Hz,Ph): 220-240V/50Hz/1P
• Capacity – Cooling (Btu/h): 24000(7500～25500)
• Capacity – Cooling (W): 7030(2200～7500)
• Capacity – Heating (Btu/h): 26900(7900～28500)
• Capacity – Heating (W): 7900(2320～8350)
• Capacity – Pdesignc (W): 7030
• Capacity – Pdesignh average (W): 6000
• Capacity – Declare capacity(-10℃) (W): 5450
• Capacity – Back up heating capacity(-10℃) (W): 550
• Electric Data（T1）- Rated Cooling Power Input (W): 2110(730~3300)
• Electric Data（T1）- Rated Heating Power Input (W): 2260(765~3100)
• Electric Data（T1）- Rated Cooling Current (A): 9.5(3.5~15.0)
• Electric Data（T1）- Rated Heating Current (A): 10.3(3.7~14.2)
• Annual energy consumption – Cooling (kwh/a): 402
• Annual energy consumption – Average (kwh/a): 2075
• Performance（T1）- EER (W/W): 3.33
• Performance（T1）- SEER (W/W): 6.2
• Performance（T1）- Energy Class: A++
• Performance（T1）- COP (W/W): 3.49
• Performance（T1）- SCOP (W/W): 4
• Performance（T1）- Energy Class: A+
• Indoor Fan Motor – Output Power (W): 60
• Indoor Fan Motor – Speed (Hi/Mi/Lo) (r/min): 590/500/430
• Indoor Unit – Indoor Air Flow(Hi/Mi/Lo) (m³/h): 1450
• Indoor Unit – Indoor sound power(S/H/M/L/Mute) (dB(A)): 59/56/52/49/47
• Indoor Unit – Indoor sound power(Standard rating conditions) (dB(A)): 56
• Indoor Unit – Indoor sound pressure(S/H/M/L/Mute) (dB(A)): 49/46/42/39/37
• Indoor Unit – Indoor sound pressure(Standard rating conditions) (dB(A)): 46
• Indoor Unit – Net Dimensions (W×D×H) (mm): 840×840×245
• Indoor Unit – Packing Dimensions (W×D×H) (mm): 920×920×270
• Indoor Unit – Net Weight (kg): 24
• Indoor Unit – Gross Weight (kg): 28
• Panel – Net Dimensions (W×D×H) (mm): 950×950×45
• Panel – Packing Dimensions (W×D×H) (mm): 1055×1055×90
• Panel – Net weight (kg): 6
• Panel – Gross weight (kg): 9
• Operation Temperature Range (℃): 16-31

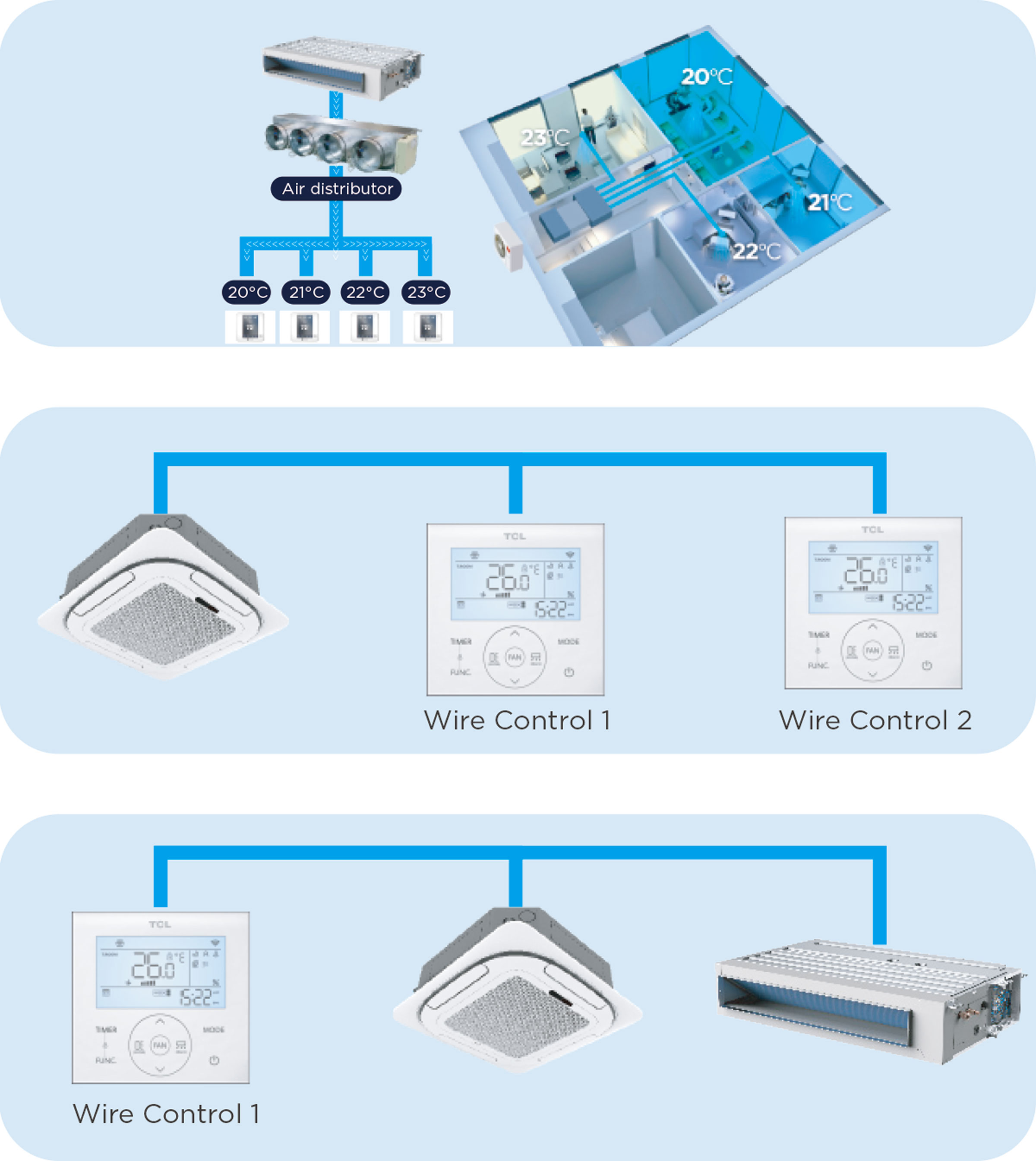

• Control type: remote controller Optional Wired controller

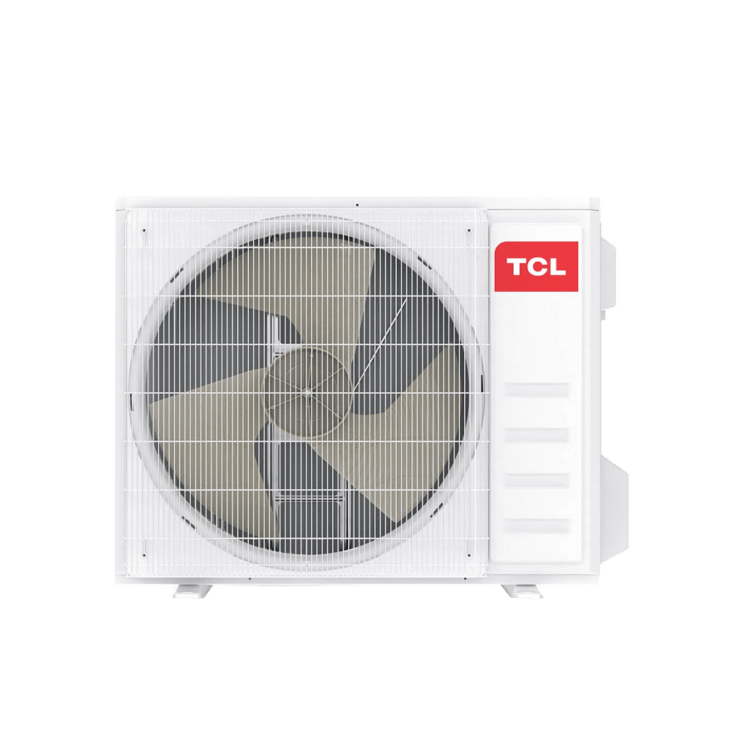

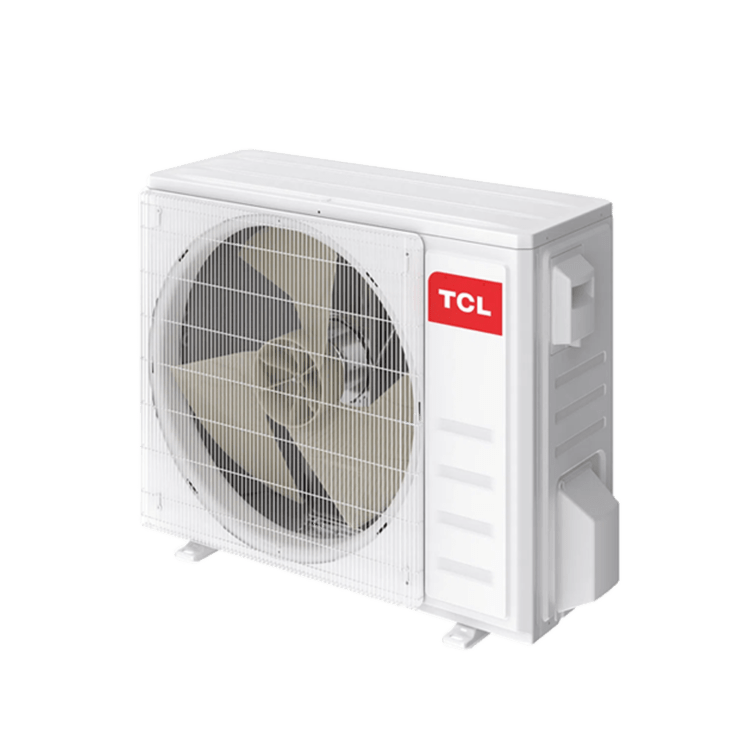

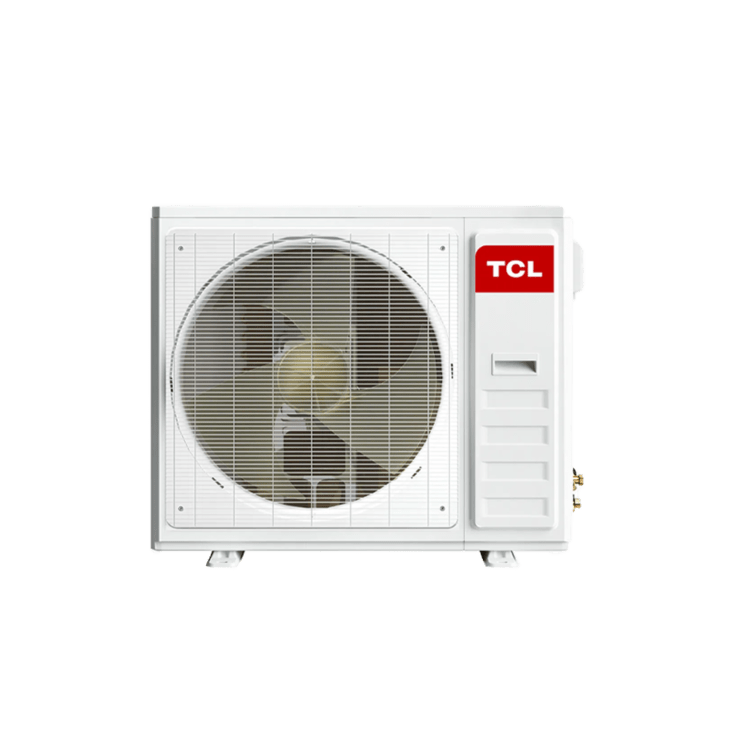

Outdoor Unit

• Case: 845D(φ7×2)
• Type: heating pump
• Power Supply (V,Hz,Ph): Indoor：220-240V/50Hz/1P Outdoor：220-240V/50Hz/1P
• Max. Input Consumption (W): 3300
• Max. Current (A): 15
• Air Flow Volume (CFM): 2060
• Air Flow Volume (m³/h): 3500
• Noise Level (dB (A)): 54
• Noise Power Level (dB (A)): 64
• Net Dimensions (W×D×H) (mm): 845×342×700
• Packing Dimensions (W×D×H) (mm): 960×430×732
• Net Weight (kg): 40
• Gross Weight (kg): 44
• Refrigerant Type/Quantity – Type: R32
• Refrigerant Type/Quantity – Charged Volume (factory) (kg): 1.35
• Refrigerant Type/Quantity – additional Volume/Beyond 5 meters (g/m): 16
• Refrigerant Type/Quantity – CO2 equivalent (tonnes): 0.911
• Design Pressure (MPa): 4.5
• Refrigerant Piping – Liquid Side (mm): 1/4″
• Refrigerant Piping – Gas Side (mm): 1/2″
• Refrigerant Piping – Max. Length (m): 35
• Refrigerant Piping – Max. Height (mm): 20
• Ambient Temperature Range (Cooling/Heating) (℃): Cooling:-15-58/Heating:-25-24
• Wire – Power Wiring (Outdoor) (m㎡): 3×2.5mm²
• Wire – Connection Wiring (IDU&ODU) (m㎡): 5×2.5mm²
