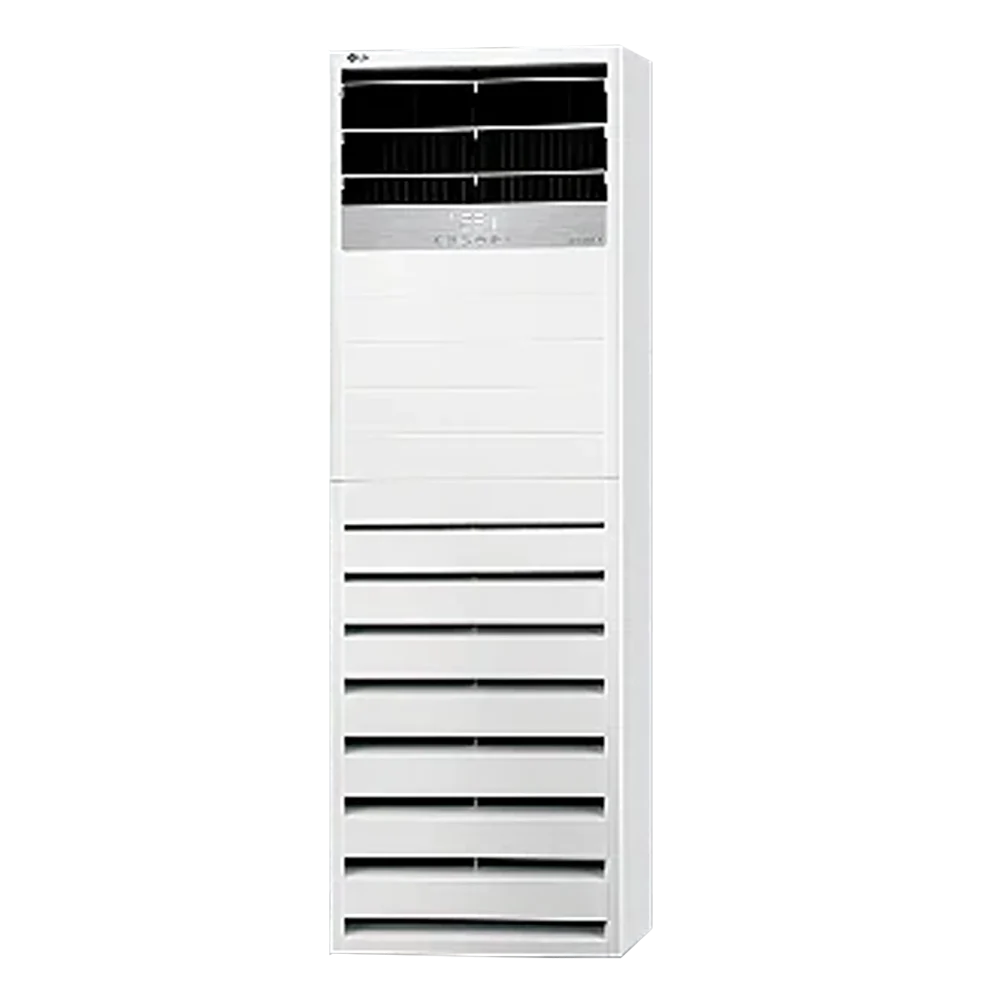

LG 10.0hp Inverter Floor Standing Split 4 TR Air Conditioner [AP-Q100LFT0]

LG 10.0hp Inverter Floor Standing Split 4 TR Air Conditioner [AP-Q100LFT0]

LG
  • Powerful and stylish air conditioner ideal for modern interiors
  • Power Heating function offers the optimal airflow angle, guaranteeing a faster heating performance
  • With powerful air speed and volume, the airflow can reach up to 20 meters.
  • Allows fresh and comfortable cooling much sooner

₵94,999

Stylish Design1

Floor Standing Unit

Powerful and stylish air conditioner ideal for modern interiors

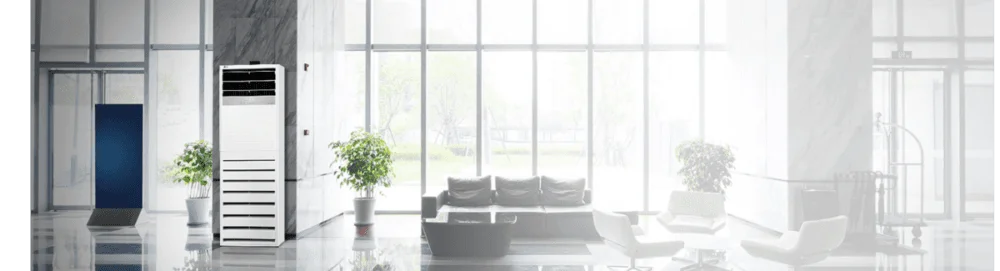

Stylish Design

Floor standing air conditioner is an ideal solution for modern interiors
Quick Response1

Quick Response

Floor standing unit can reach at a set temperature in a shorter period of time while providing powerful cooling. Meanwhile, the Power Heating function offers the optimal airflow angle, guaranteeing a faster heating performance.

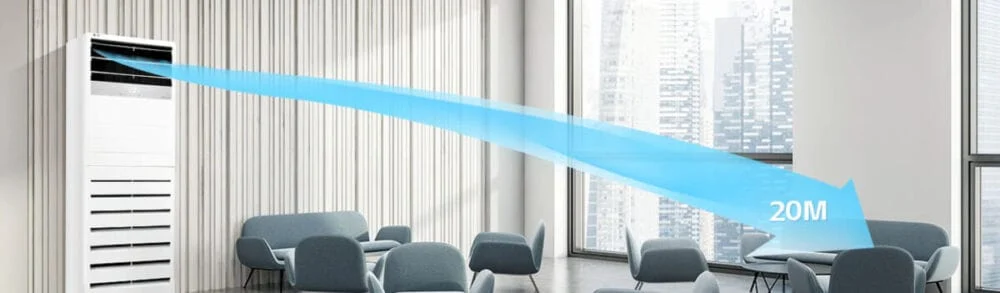

Powerful Airflow1

Powerful Airflow

With powerful air speed and volume, the airflow can reach up to 20 meters. This allows fresh and comfortable cooling much sooner.
INDOOR SPECIFICATIONS
  • Capacity Cooling (Rated) – ㎾
    28.43
    Capacity Cooling (Rated) – Btu/h
    97,000
  • Capacity Cooling (Rated) – ㎾
    22.57
    Capacity Cooling (Rated) – Btu/h
    77,000
  • Power Input Cooling (Rated) – ㎾
    11.20
    Running Current Cooling (Rated) – A
    18.0
  • Power Supply – V, Ø, ㎐
    380-415, 3, 50
    Dimensions Body (W × H × D) – ㎜
    1,050 × 1,880 × 495
  • Dimensions Body (W × H × D) – inch
    41-1/4 × 74-7/16 × 19-1/8
    Weight Net – ㎏
    113
  • Heat Exchanger (Rows × Columns × FPI)
    3 × 40 × 19
    Heat Exchanger Face Area – ㎡ (ft²)
    0.77 (8.29)
  • Fan Type
    Sirocco
    Fan Air Flow Rate (SH / H / M / L) – ㎥/min
    68 / 61 / – / 50
  • Fan Air Flow Rate (SH / H / M / L) – ft³/min
    2,402 / 2,154 / – / 1,766
    Piping Connections Liquid Side – ㎜(inch)
    Ø 9.52 (3/8)
  • Piping Connections Gas Side – ㎜(inch)
    Ø 22.2 (7/8)
    Piping Connections Drain Pipe (O.D. / I.D.) – ㎜
    Ø 32.0 / 25.0
  • Safety Devices
    Fuse
    Power and Communication Cable (included Earth) – No. × ㎟
    4C × 1.5
OUTDOOR SPECIFICATIONS
  • Capacity Cooling (Rated) – ㎾
    28.43
    Capacity Cooling (Rated) – Btu/h
    97,000
  • Capacity Cooling (Rated) – ㎾
    22.57
    Capacity Cooling (Rated) – Btu/h
    77,000
  • Power Input Cooling (Rated) – ㎾
    11.20
    Running Current Cooling (Rated) – A
    18.0
  • Power Supply – V, Ø, ㎐
    380-415, 3, 50
    Dimensions Body (W × H × D) – ㎜
    1,090 × 1,625 × 380
  • Dimensions Body (W × H × D) – inch
    34-1/4 × 25-25/32 × 12-19/32
    Weight Net – ㎏
    153
  • Heat Exchanger (Rows × Columns × FPI) × No.
    (3 × 38 × 14) × 2
    Compressor Type
    BLDC INV Scroll
  • Compressor Model – Model × No.
    JBA068MAF × 1
    Compressor Motor type
    BLDC
  • Compressor Motor Output – W × No.
    4,241 × 2
    Fan Type
    Propeller
  • Fan Air Flow Rate – ㎥/min × No.
    190 × 2
    Fan Motor Type
    BLDC
  • Fan Motor Output – W × No.
    250 × 2
    Sound Pressure Level Cooling (Rated) – dB(A)
    60
  • Piping Connections Liquid Side (Outer Dia.) – ㎜(inch)
    Ø 9.52 (3/8)
    Piping Connections Gas Side (Outer Dia.) – ㎜(inch)
    Ø 22.2 (7/8)
  • Piping Length (Min./Max.) – m
    5 / 50
    Refrigerant Type
    R410A
  • Refrigerant Precharged Amount – g
    6,600
    Refrigerant Chargeless-Pipe Length – m(ft)
    5 (16.4)
  • Refrigerant Additional Charging Volume – g/m(oz/ft)
    60 (0.65)
    Refrigerant Control
    Electronic Expansion Valve
  • Refrigerant Oil Type
    FVC68D
    Refrigerant Oil Charged volume – cc × No.
    1,400 × 1
  • Wiring Connections Power Supply Cable (included Earth) – No. × ㎟
    5C × 6.0
    Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) – m(ft)
    30 (98.4)
SKU: AP-Q100LFT0 Category: Tags: , , , , ,
Brand

Cooling Capacity

10.0 HP
Compressor Type

Inverter
Air Conditioner Type

Floor-Mounted
INDOOR SPECIFICATIONS
  • Capacity Cooling (Rated) – ㎾
    28.43
    Capacity Cooling (Rated) – Btu/h
    97,000
  • Capacity Cooling (Rated) – ㎾
    22.57
    Capacity Cooling (Rated) – Btu/h
    77,000
  • Power Input Cooling (Rated) – ㎾
    11.20
    Running Current Cooling (Rated) – A
    18.0
  • Power Supply – V, Ø, ㎐
    380-415, 3, 50
    Dimensions Body (W × H × D) – ㎜
    1,050 × 1,880 × 495
  • Dimensions Body (W × H × D) – inch
    41-1/4 × 74-7/16 × 19-1/8
    Weight Net – ㎏
    113
  • Heat Exchanger (Rows × Columns × FPI)
    3 × 40 × 19
    Heat Exchanger Face Area – ㎡ (ft²)
    0.77 (8.29)
  • Fan Type
    Sirocco
    Fan Air Flow Rate (SH / H / M / L) – ㎥/min
    68 / 61 / – / 50
  • Fan Air Flow Rate (SH / H / M / L) – ft³/min
    2,402 / 2,154 / – / 1,766
    Piping Connections Liquid Side – ㎜(inch)
    Ø 9.52 (3/8)
  • Piping Connections Gas Side – ㎜(inch)
    Ø 22.2 (7/8)
    Piping Connections Drain Pipe (O.D. / I.D.) – ㎜
    Ø 32.0 / 25.0
  • Safety Devices
    Fuse
    Power and Communication Cable (included Earth) – No. × ㎟
    4C × 1.5
OUTDOOR SPECIFICATIONS
  • Capacity Cooling (Rated) – ㎾
    28.43
    Capacity Cooling (Rated) – Btu/h
    97,000
  • Capacity Cooling (Rated) – ㎾
    22.57
    Capacity Cooling (Rated) – Btu/h
    77,000
  • Power Input Cooling (Rated) – ㎾
    11.20
    Running Current Cooling (Rated) – A
    18.0
  • Power Supply – V, Ø, ㎐
    380-415, 3, 50
    Dimensions Body (W × H × D) – ㎜
    1,090 × 1,625 × 380
  • Dimensions Body (W × H × D) – inch
    34-1/4 × 25-25/32 × 12-19/32
    Weight Net – ㎏
    153
  • Heat Exchanger (Rows × Columns × FPI) × No.
    (3 × 38 × 14) × 2
    Compressor Type
    BLDC INV Scroll
  • Compressor Model – Model × No.
    JBA068MAF × 1
    Compressor Motor type
    BLDC
  • Compressor Motor Output – W × No.
    4,241 × 2
    Fan Type
    Propeller
  • Fan Air Flow Rate – ㎥/min × No.
    190 × 2
    Fan Motor Type
    BLDC
  • Fan Motor Output – W × No.
    250 × 2
    Sound Pressure Level Cooling (Rated) – dB(A)
    60
  • Piping Connections Liquid Side (Outer Dia.) – ㎜(inch)
    Ø 9.52 (3/8)
    Piping Connections Gas Side (Outer Dia.) – ㎜(inch)
    Ø 22.2 (7/8)
  • Piping Length (Min./Max.) – m
    5 / 50
    Refrigerant Type
    R410A
  • Refrigerant Precharged Amount – g
    6,600
    Refrigerant Chargeless-Pipe Length – m(ft)
    5 (16.4)
  • Refrigerant Additional Charging Volume – g/m(oz/ft)
    60 (0.65)
    Refrigerant Control
    Electronic Expansion Valve
  • Refrigerant Oil Type
    FVC68D
    Refrigerant Oil Charged volume – cc × No.
    1,400 × 1
  • Wiring Connections Power Supply Cable (included Earth) – No. × ㎟
    5C × 6.0
    Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) – m(ft)
    30 (98.4)
